Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

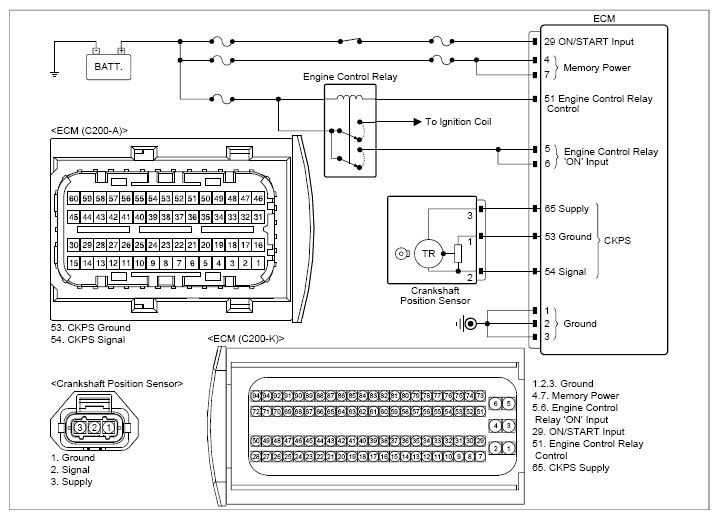

G13492649

Courtesy of KIA MOTORS AMERICA, INC.

Crankshaft Position Sensor Circuit Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	CKPS connector	3 (power)	Chassis ground	-	Approx. 5V
	CKPS connector	2 (signal)	Chassis ground	-	Approx. 4.8V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	CKPS connector	1 (ground)	Chassis ground	-	Approx. below 1Ω
	CKPS connector	2 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
