Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

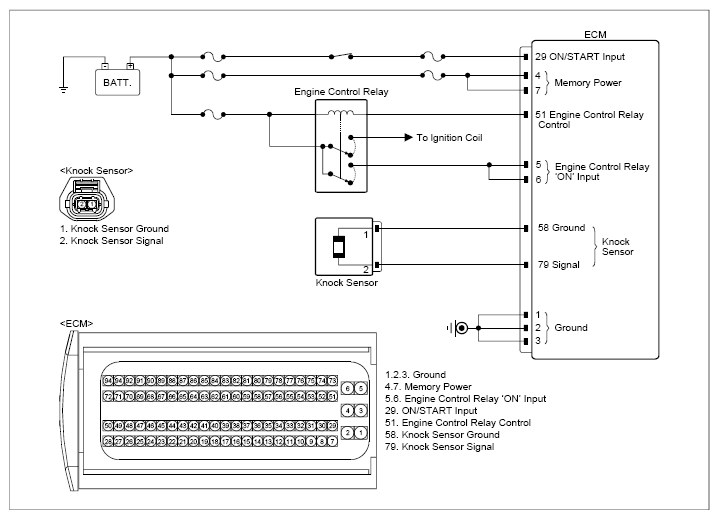

Knock sensor #1 connector | 2 (signal) | Chassis ground | - | Approx. 1.6V |
| Knock sensor #1 connector | 1 (ground) | Chassis ground | - | Approx. 1.6V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
