Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

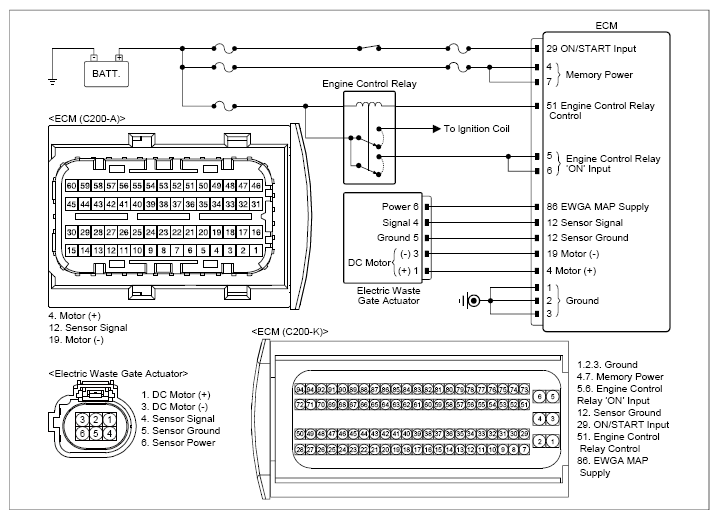

G13492556

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EWGA connector	1 (motor +)	Chassis ground	-	Approx. 1.8V
	EWGA connector	3 (motor -)	Chassis ground	-	Approx. 0V
	EWGA connector	6 (sensor power)	Chassis ground	-	Approx. 5V
	EWGA connector	4 (signal)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EWGA connector	4 (signal)	Chassis ground	-	∞ (infinity)Ω
	EWGA connector	5 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
