Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

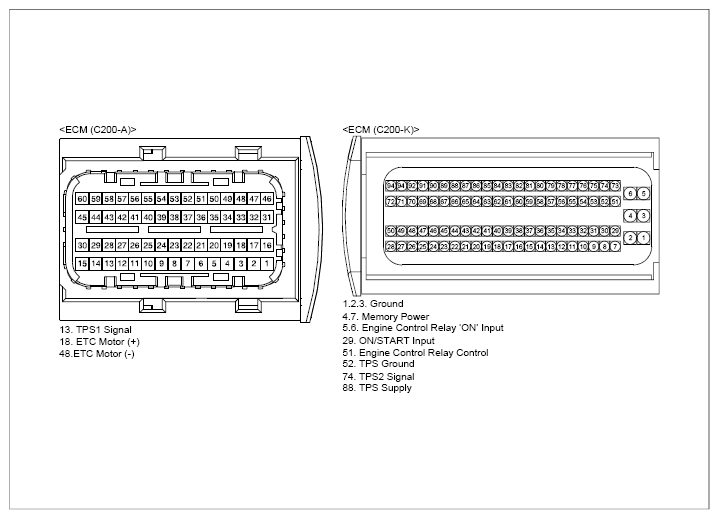

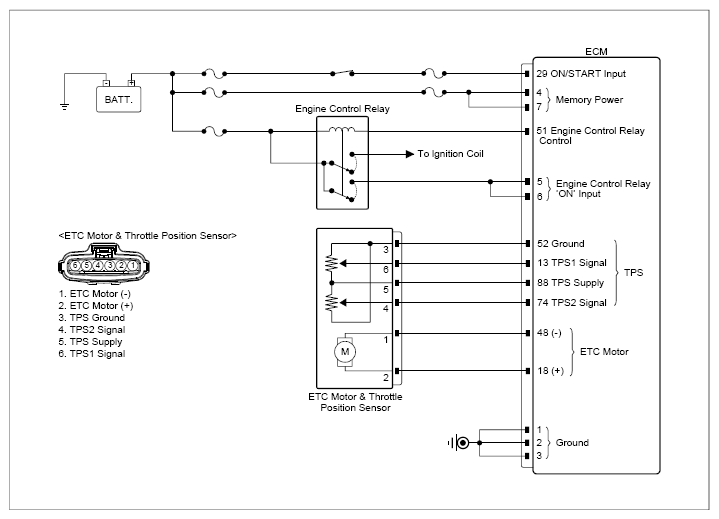

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ETC motor & TPS connector | 5 (TPS supply) | Chassis ground | - | Approx. 5V |
| ETC motor & TPS connector | 4 (TPS2 signal) | Chassis ground | - | Approx. 0V | |
|
ETC motor & TPS connector | 4 (TPS2 signal) | Chassis ground | - | ∞ (infinity)Ω |
| ETC motor & TPS connector | 4 (TPS2 signal) | ECM connector | 74 (TPS2 signal) | Approx. below 1Ω | |
| ETC motor & TPS connector | 3 (ground) | Chassis ground | - | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
