Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

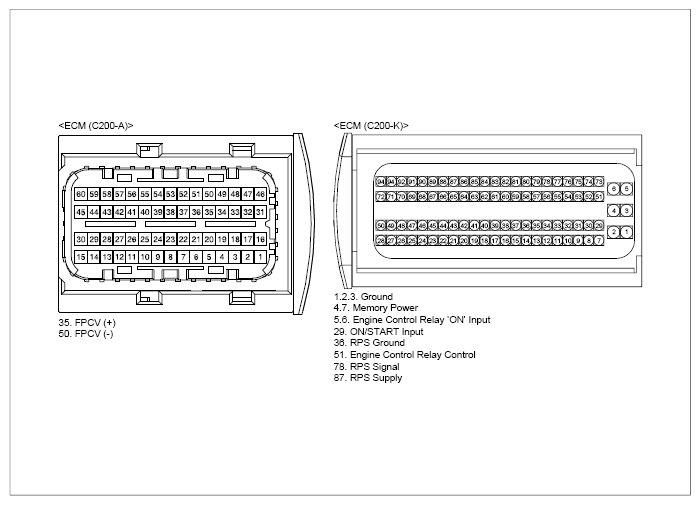

G13492309

Courtesy of KIA MOTORS AMERICA, INC.

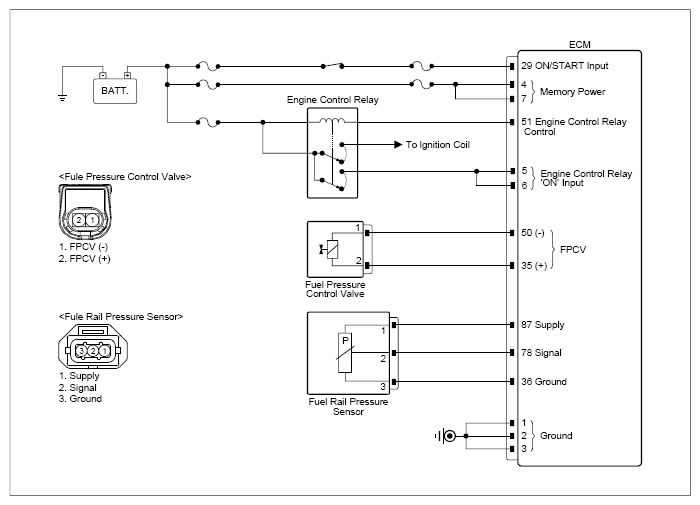

G13492310

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	FPCV connector	2 (+)	Chassis ground	-	Approx. 4.0V (duty)
	FPCV connector	1 (-)	Chassis ground	-	Approx. 0V
	FRPS connector	1 (power)	Chassis ground	-	Approx. 4.9V
	FRPS connector	2 (signal)	Chassis ground	-	Approx. 4.9V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	FRPS connector	3 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
