Component Inspection: Notes

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Actuation Test" of concerned component with KDS.

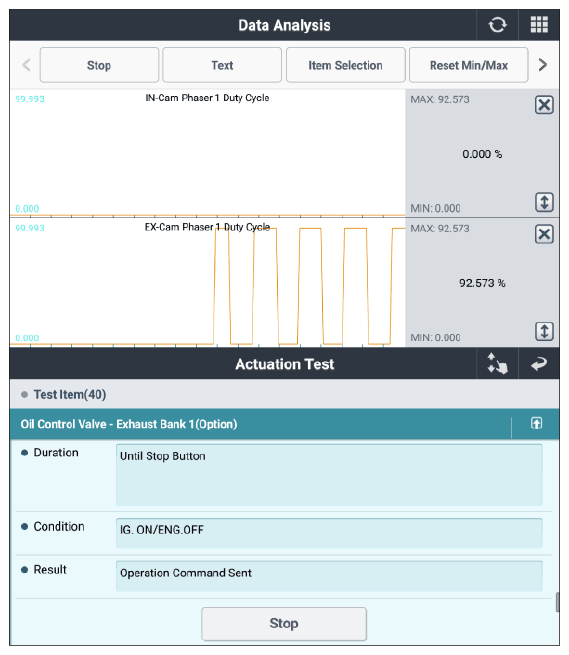

 Fig.1
G13492288Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
