Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

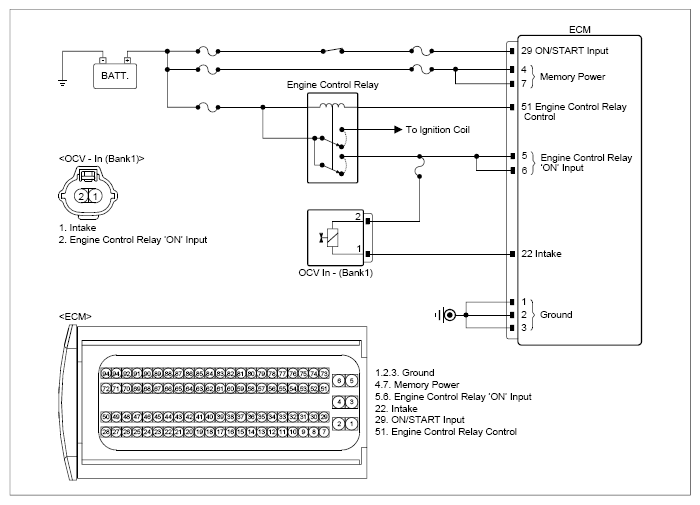

G13492282

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	OCV - In (Bank1) connector	2 (power)	Chassis ground	-	Approx. 12V
	OCV - In (Bank1) connector	1 (control)	Chassis ground	-	Approx. 3.5V
Ignition "OFF" Disconnect the electrical connector(s) from the concerned component.	OCV - In (Bank1) connector	2 (power)	OCV - In (Bank1) connector	1 (control)	∞ (infinity)Ω
	OCV - In (Bank1) connector	1 (control)	Chassis ground	-	∞ (infinity)Ω
	OCV - In (Bank1) connector	1 (control)	ECM connector	22 (control)	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
