Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

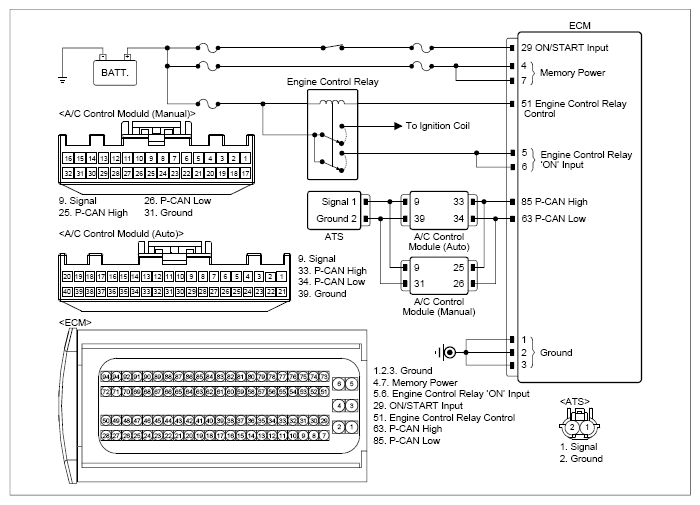

G13492263

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	AATS connector	1 (signal)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	AATS connector	2 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "ON". Disconznect the battery (-) terminal. Disconnect the electrical connector(s) from the concerned component.	A/C control module (auto) connector	33 (P-CAN high)	A/C control module connector (Auto)	34 (P-CAN low)	Approx. 60Ω
	A/C control module (auto) connector	25 (P-CAN high)	A/C control module connector (Manual)	26 (P-CAN low)	Approx. 60Ω
	ECM (component side)	85 (P-CAN high)	ECM (component side)	63 (P-CAN low)	Approx. 120Ω
	ICU (component side)	9 (P-CAN high)	ICU (component side)	8 (P-CAN low)	Approx. 120Ω
Ignition "ON". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	A/C control module connector (Auto)	33 (P-CAN high)	Chassis ground	-	Fig.1
	A/C control module connector (Auto)	34 (P-CAN low)	Chassis ground	-	Fig.1
	A/C control module connector (Manual)	25 (P-CAN high)	Chassis ground	-	Fig.1
	A/C control module connector (Manual)	26 (P-CAN low)	Chassis ground	-	Fig.1

G13492264

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
