Visual Check

WARNING: This page is about a different variant/trim than selected.

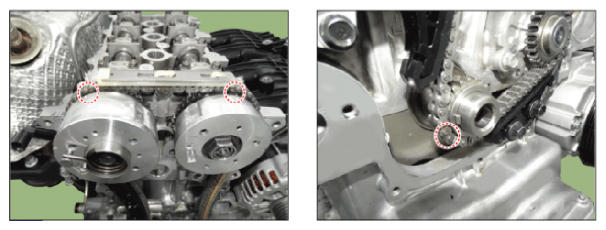

Check Camshaft and crankshaft alignment.

G13492195

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair as necessary and go to "VERIFICATION OF REPAIR " procedure.
