Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.

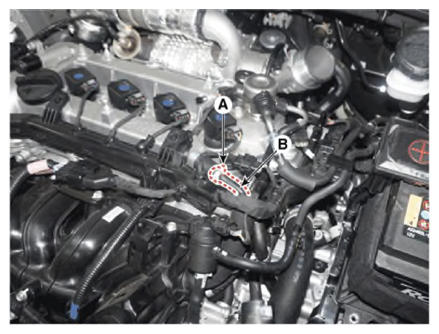

- Disconnect the PCV hose (A).
- Remove the PCV valve (B).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
