Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

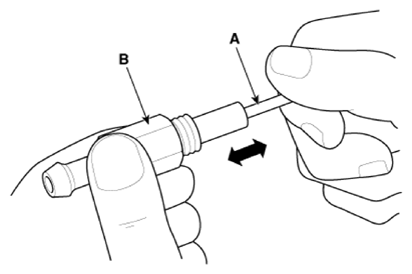

Insert a thin stick (A) into the PCV valve (B) from the threaded side to check that the plunger moves.

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: If the plunger does not move (PCV valve is clogged), clean or replace the valve.
