Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

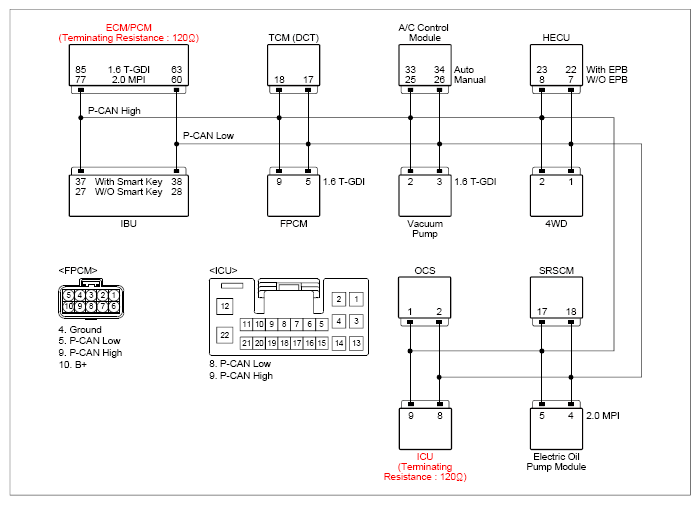

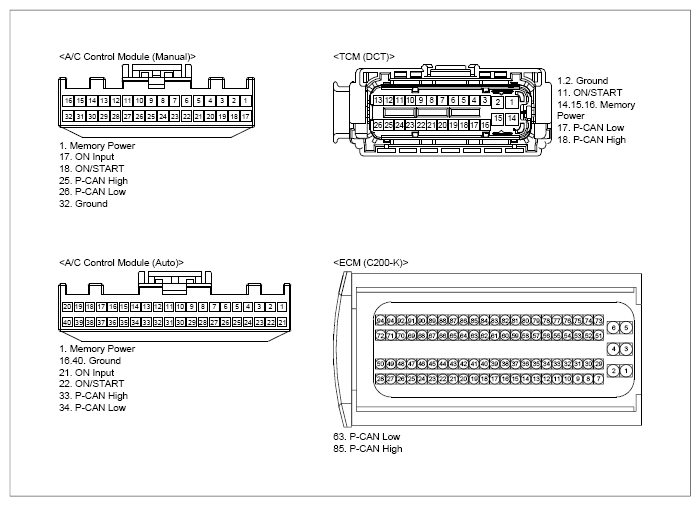

CAN COMMUNICATION LINE INSPECTION CONDITION
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECM (component side) | 85 (P-CAN high) | ECM (component side) | 63 (P-CAN low) | Approx. 120Ω |
| ICU (component side) | 9 (P-CAN high) | ICU (component side) | 8 (P-CAN low) | Approx. 120Ω | |
| ECM connector | 85 (P-CAN high) | ICU connector | 9 (P-CAN high) | Approx. below 1Ω | |
| ECM connector | 63 (P-CAN low) | ICU connector | 6 (P-CAN low) | Approx. below 1Ω | |
| ECM connector | 85 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM connector | 63 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
|
ECM connector | 85 (P-CAN high) | Chassis ground | - | Fig.1 |
| ECM connector | 63 (P-CAN low) | Chassis ground | - | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- If no problems were found with the circuits or connectors, replace the ICU or ECM and go to "VERIFICATION OF REPAIR " procedure.
