Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

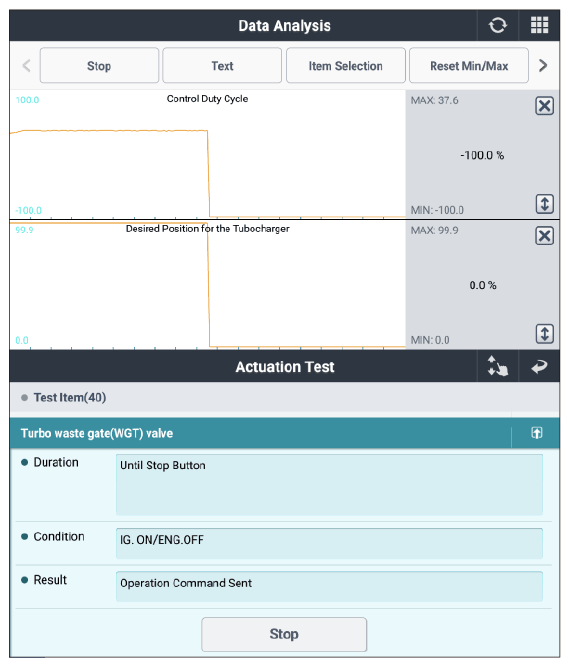

Fig.1 |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "EWGA RESISTANCE CHECK " procedure.
EWGA RESISTANCE INSPECTION CONDITION
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
EWGA (component side) | 1 (motor +) | EWGA (component side) | 3 (motor -) | Approx. 1.4 to 2.0n |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the EWGA and go to "VERIFICATION OF REPAIR " procedure.
