Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

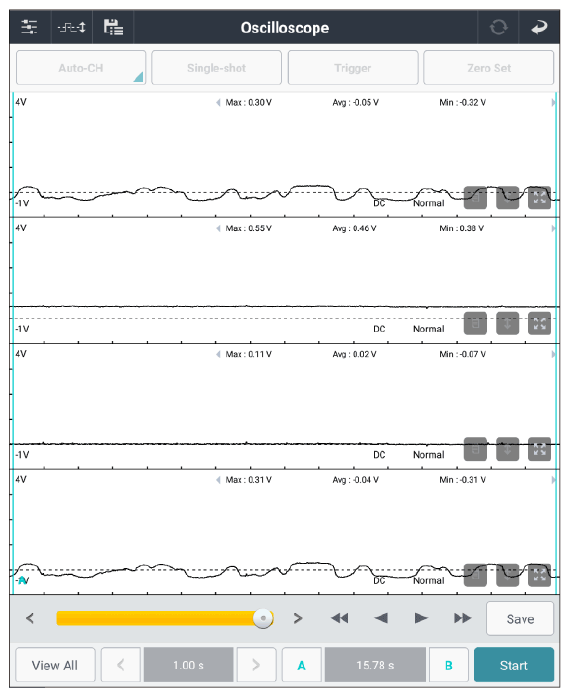

HO2S (Bank1, Sensor1) connector | 3 (pumping line) | HO2S (Bank1, Sensor1) connector | 2 (nernst voltage) | Fig.1 |
| HO2S (Bank1, Sensor1) connector | 1 (virtual ground) | HO2S (Bank1, Sensor1) connector | 6 (trim resistor) | ||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S sensor (Bank1, Sensor1) and go to "VERIFICATION OF REPAIR " procedure.
