Visual Check

WARNING: This page is about a different variant/trim than selected.

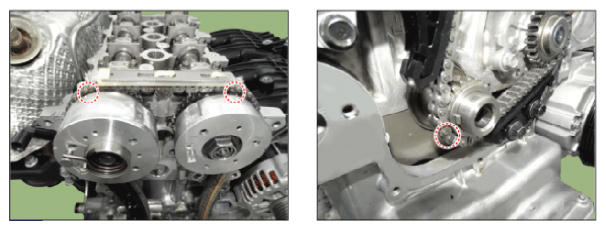

Check Camshaft and crankshaft alignment.

Courtesy of KIA MOTORS AMERICA, INC.

Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the ECM and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the timing chain and go to "VERIFICATION OF REPAIR " procedure.
