Monitor KDS Data

WARNING: This page is about a different variant/trim than selected.

Inspection Condition	Inspection Procedure	Reference
Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 to 3

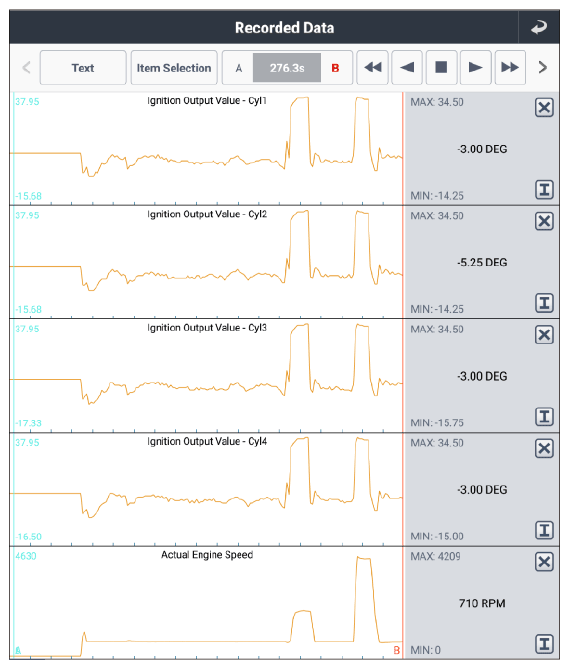

G13492814

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Engine "ON".	CKPS connector	2 (signal)	CMPS - In connector	2 (signal)	Fig.2
Engine "ON".	CMPS - Ex connector	2 (signal)	OCV - In connector	1 (control)	Fig.2

G13492815

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Engine "ON".	CKPS connector	2 (signal)	CMPS - In connector	2 (signal)	Fig.3
Engine "ON".	CMPS - Ex connector	2 (signal)	OCV - Ex connector	1 (control)	Fig.3

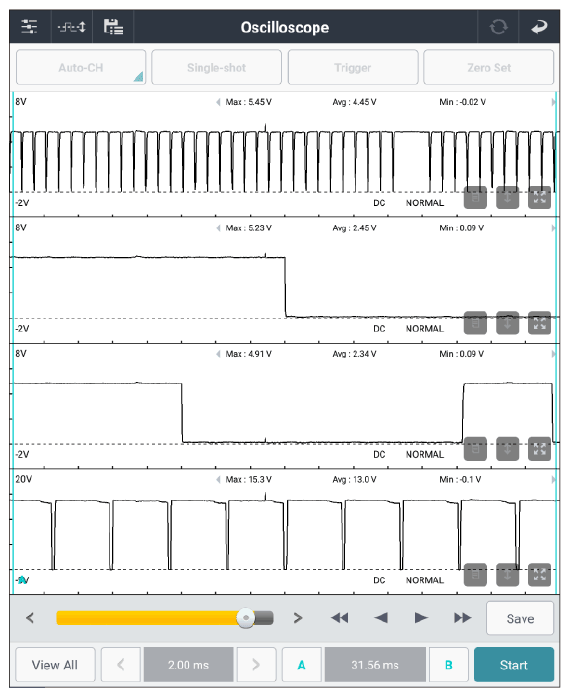

G13492816

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
