Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

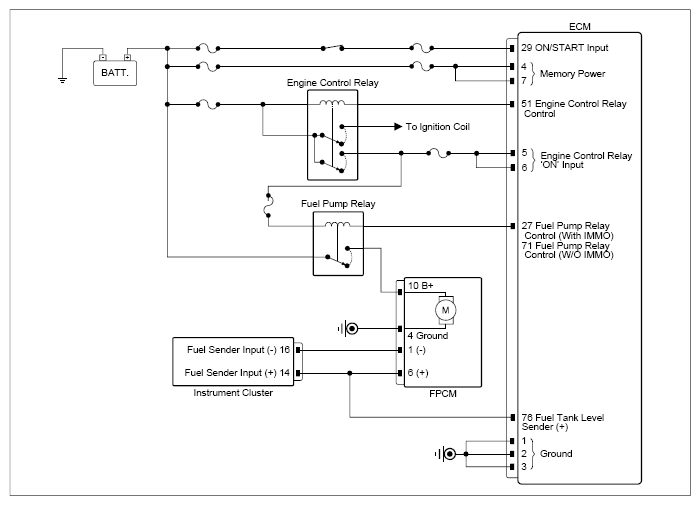

G13492770

Courtesy of KIA MOTORS AMERICA, INC.

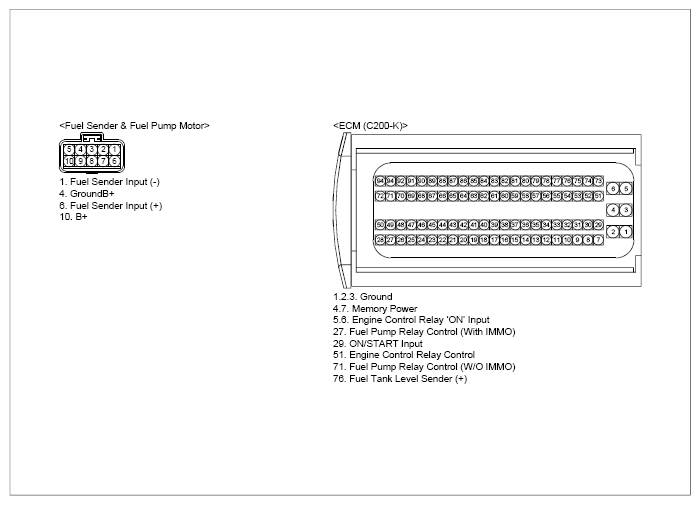

G13492771

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	FPCM connector	10 (B+)	Chassis ground	-	Approx. 11.2V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	FPCM connector	6 (fuel sender +)	CLU connector	14 (fuel sender +)	Approx. below 1Ω
	FPCM connector	1 (fuel sender -)	Chassis ground	16 (fuel sender -)	Approx. below 1Ω
	FPCM connector	6 (fuel sender +)	ECM connector	76 (fuel sender +)	Approx. below 1Ω
	FPCM connector	6 (fuel sender +)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
