Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

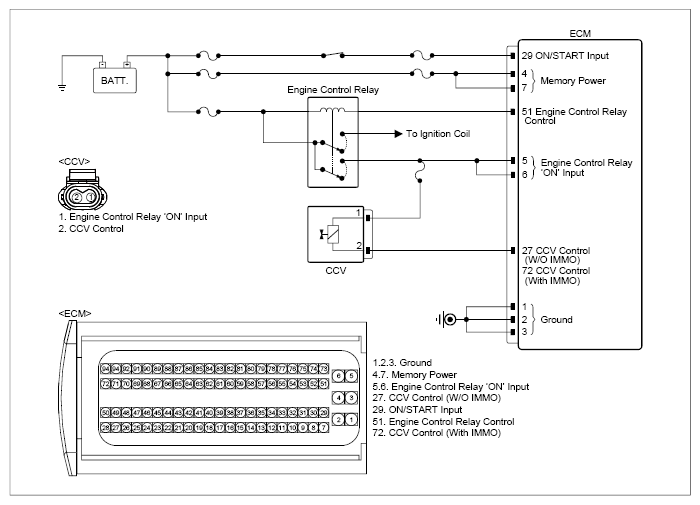

G13492708

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	CCV connector	1 (power)	Chassis ground	-	Approx. 12V
	CCV connector	2 (CCV control)	Chassis ground	-	Approx. 3.5V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	CCV connector	2 (CCV control)	Chassis ground	-	∞ (infinity)Ω
	CCV connector	2 (CCV control)	CCV connector	1 (power)	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
