- Remove the transfer assembly.
(Refer to Transfer Assembly - "FRONT WHEEL TRANSFER ASSEMBLY ")

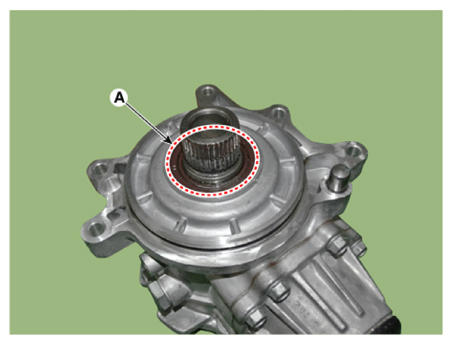

- Remove the oil seal (A).

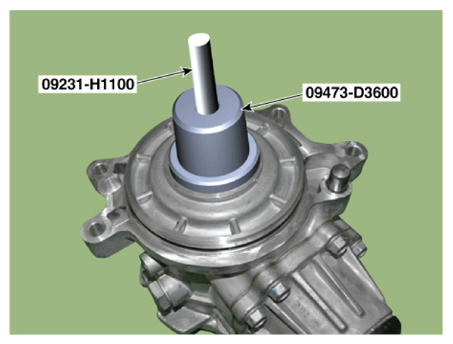

- Install the new oil seal with (09473-D3600, 09231-H1100).
- If the transfer oil is leaking, top up the oil.
(Refer to Transfer Assembly - "TRANSFER FLUID ")
- Install the transfer assembly.
(Refer to Transfer Assembly - "FRONT WHEEL TRANSFER ASSEMBLY ")
