  1. Remove the transfer assembly.

    (Refer to Transfer Assembly - "FRONT WHEEL TRANSFER ASSEMBLY ")

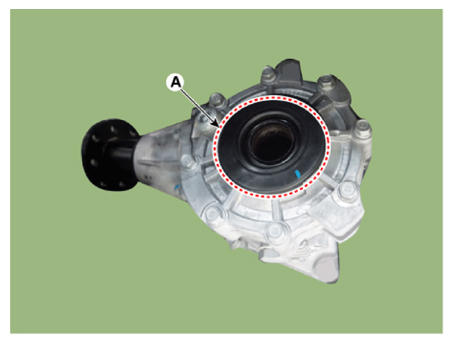

  2. Remove the dust cover (A).
    G13481008Courtesy of KIA MOTORS AMERICA, INC.

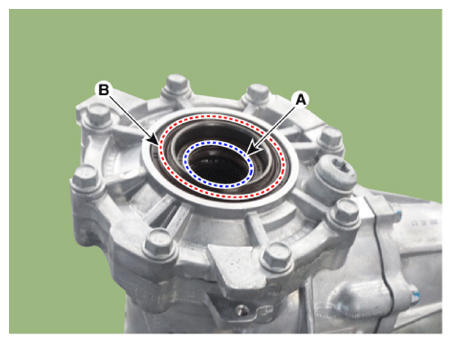

  3. Remove the oil seal (A), (B) of driveshaft side.
    G13481009Courtesy of KIA MOTORS AMERICA, INC.

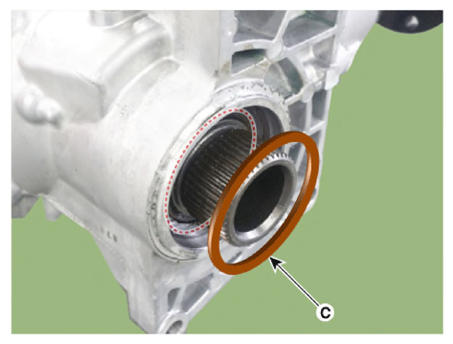

  4. Remove the oil seal (C) of transaxle side.
    G13481010Courtesy of KIA MOTORS AMERICA, INC.

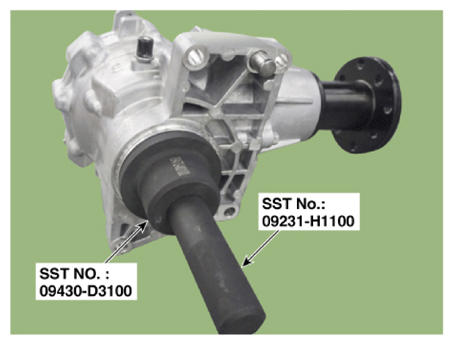

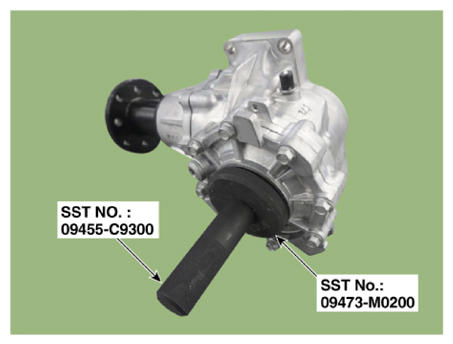

  5. Install the oil seal with a SST.

    SST (No.: 09430-D3100, 09231-H1100) [Transaxle side]

    SST (No.: 09455-C9300, 09231-H1100) [Driveshaft side]

    G13481011Courtesy of KIA MOTORS AMERICA, INC.
    G13481012Courtesy of KIA MOTORS AMERICA, INC.
  6. If the transfer oil is leaking, top up the oil.

    (Refer to Transfer Assembly - "TRANSFER FLUID ")

  7. Install the transfer assembly.

    (Refer to Transfer Assembly - "FRONT WHEEL TRANSFER ASSEMBLY ")
