Gasoline 2.0

WARNING: This page is about a different variant/trim than selected.
  1. Remove the driveshaft axle of right side.

    (Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")

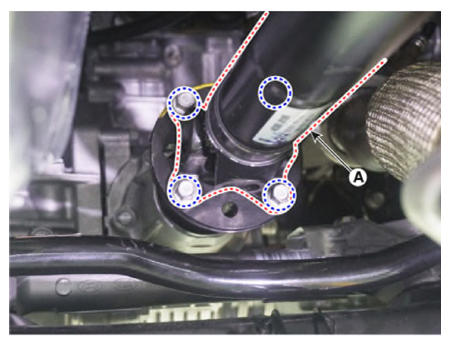

  2. Remove the propeller shaft (A).
    G13481000Courtesy of KIA MOTORS AMERICA, INC.

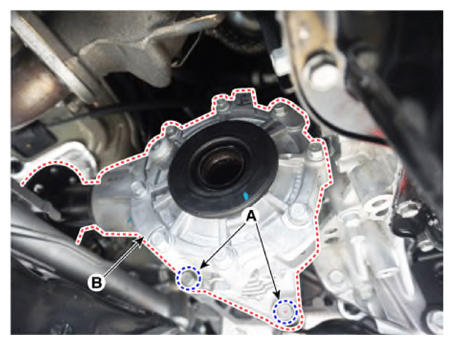

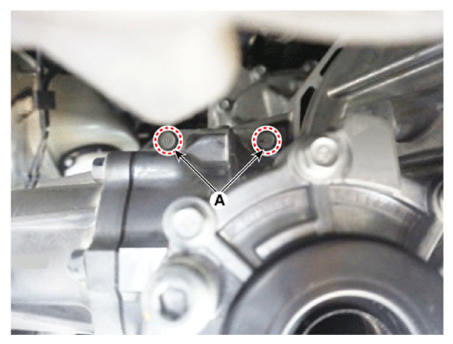

  3. Remove the transfer assembly (B) after loosening the transfer mounting bolts (A).
    G13481001Courtesy of KIA MOTORS AMERICA, INC.
    G13481002Courtesy of KIA MOTORS AMERICA, INC.
