Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

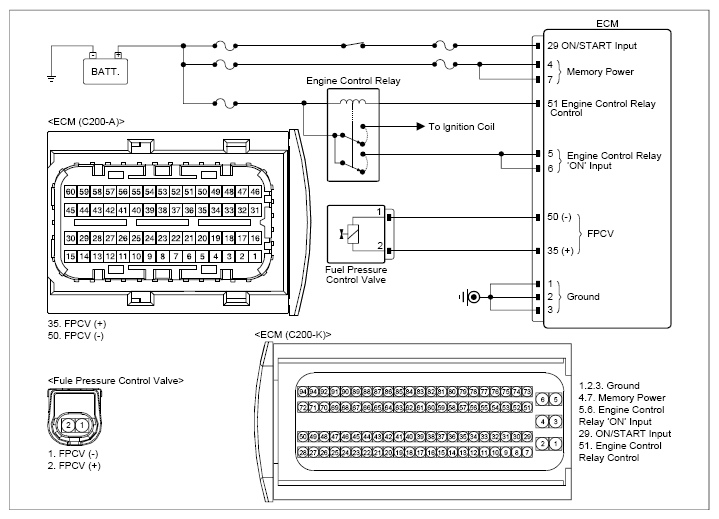

G13492485Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 FPCV connector 2 (+) Chassis ground - Approx. 4.0V (duty)
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 FPCV connector 1 (-) Chassis ground - Approx. 0V

Good

No Good
