Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the dual clutch transmission from the vehicle.

    (Refer to DCT System - "DCT ")

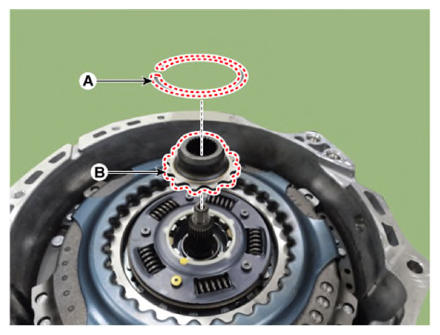

  2. Remove the spline hub (B) after removing a retaining ring (A).
    G13480960Courtesy of KIA MOTORS AMERICA, INC.

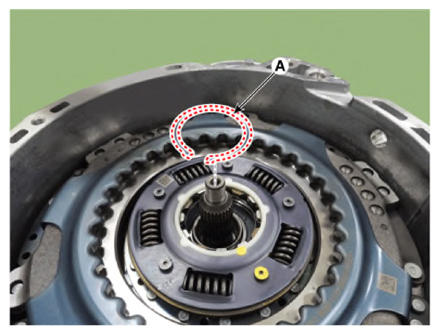

  3. Remove the snap ring (A).
    G13480961Courtesy of KIA MOTORS AMERICA, INC.

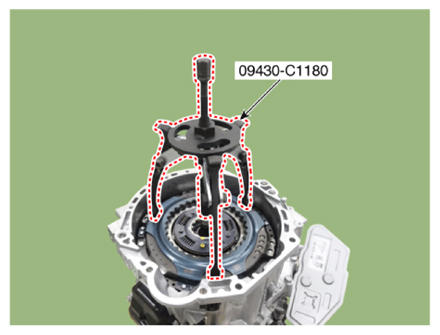

  4. Remove the dual clutch assembly (A) by using the special service tool (09430-C1180).
    G13480962Courtesy of KIA MOTORS AMERICA, INC.
