Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the dual clutch transmission from the vehicle.

    (Refer to DCT System - "DCT ")

  2. Remove the dual clutch & TCM assembly.

    (Refer to Dual Clutch System - "DUAL CLUTCH & TCM ASSEMBLY ")

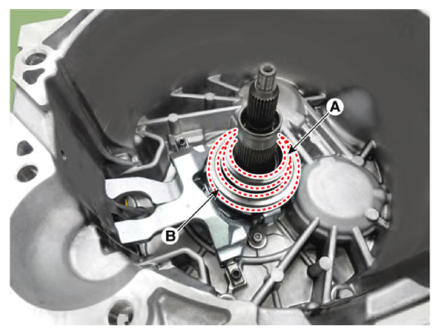

  3. Remove the clutch engagement bearing 1 (B) and 2 (A).
    G13480974Courtesy of KIA MOTORS AMERICA, INC.

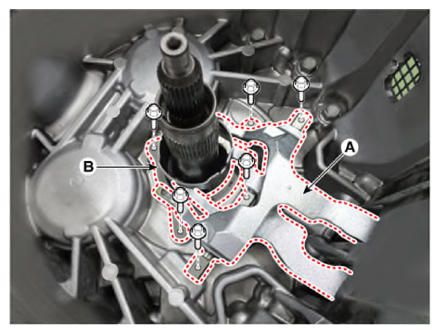

  4. Remove the clutch engagement fork (A) and engagement bearing sleeve (B).
    G13480975Courtesy of KIA MOTORS AMERICA, INC.
