Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the gear to "N".
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

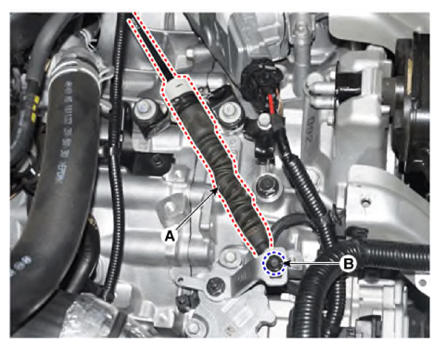

  4. Remove the shift cable (A) from the bracket after loosening a nut (B).
    G13480916Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

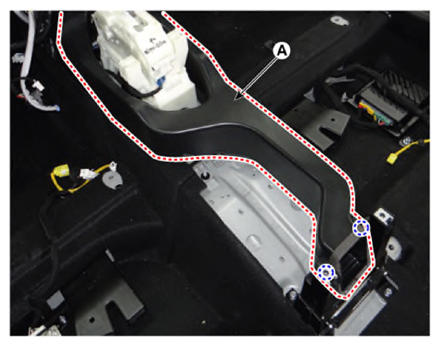

  6. Remove the air duct (A) by loosening the screws.
    G13480917Courtesy of KIA MOTORS AMERICA, INC.

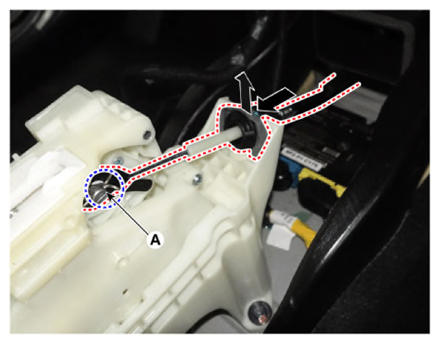

  7. Remove the shift cable after removing the snap pin (A).
    G13480918Courtesy of KIA MOTORS AMERICA, INC.

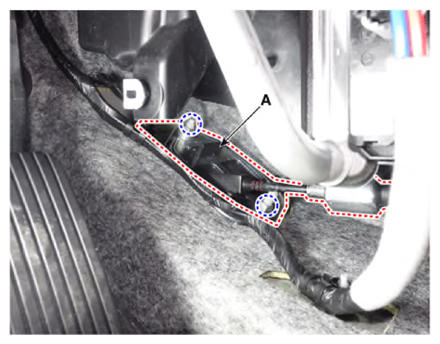

  8. Remove the shift cable retainer (A) after loosening the nuts.

    Then, remove the shift cable by pulling it toward the vehicle interior.

    G13480919Courtesy of KIA MOTORS AMERICA, INC.
