Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Place the shift lever in the "N" position.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

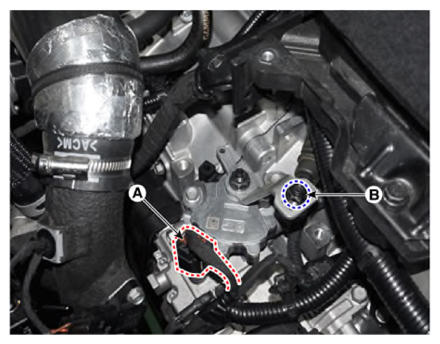

  3. Disconnect the inhibitor switch connector (A) and loosen the shift cable mounting nut (B).
    G13480896Courtesy of KIA MOTORS AMERICA, INC.

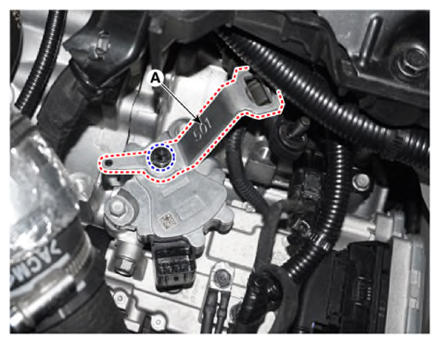

  4. Remove the manual control lever (A) and the washer after loosening a nut.
    G13480897Courtesy of KIA MOTORS AMERICA, INC.

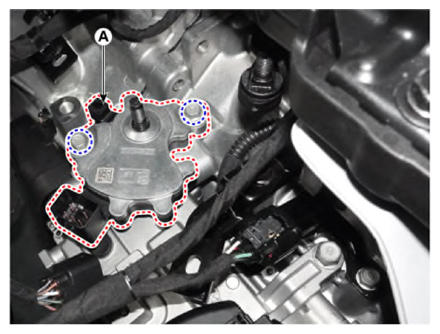

  5. Remove the inhibitor assembly (A) after loosening the bolts.
    G13480898Courtesy of KIA MOTORS AMERICA, INC.
