Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

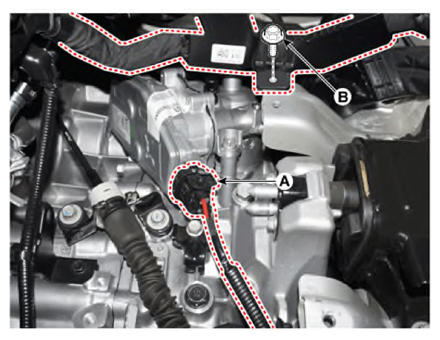

Disconnect the gear actuator connector (A) and loosen the wiring bracket mounting bolt (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

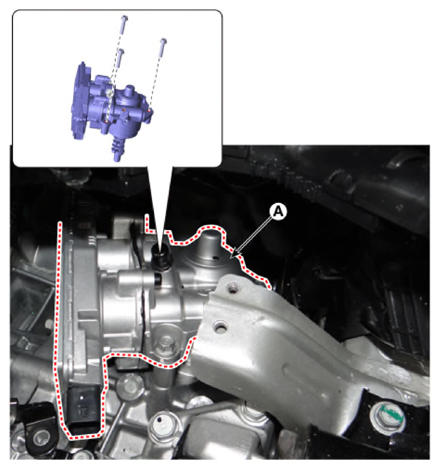

Remove the gear actuator assembly after loosening bolts (A).
Tightening torque:

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)
