Component Location

WARNING: This page is about a different variant/trim than selected.

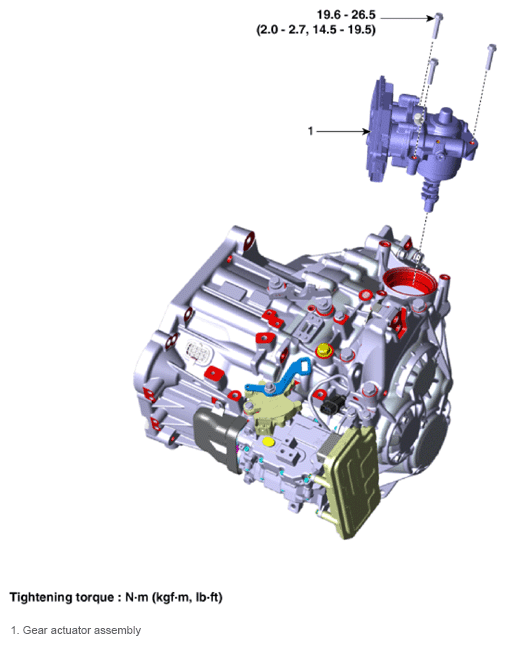

Fig 1: Gear Actuator Assembly Components Location With Torque Specification
G13480876Courtesy of KIA MOTORS AMERICA, INC.
