Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the clutch actuator.
(Refer to Dual Clutch Transmission Control System - "CLUTCH ACTUATOR ASSEMBLY ")

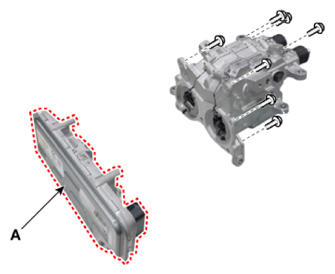

- Remove the TCM (A) after loosening the bolts.
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)
