Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

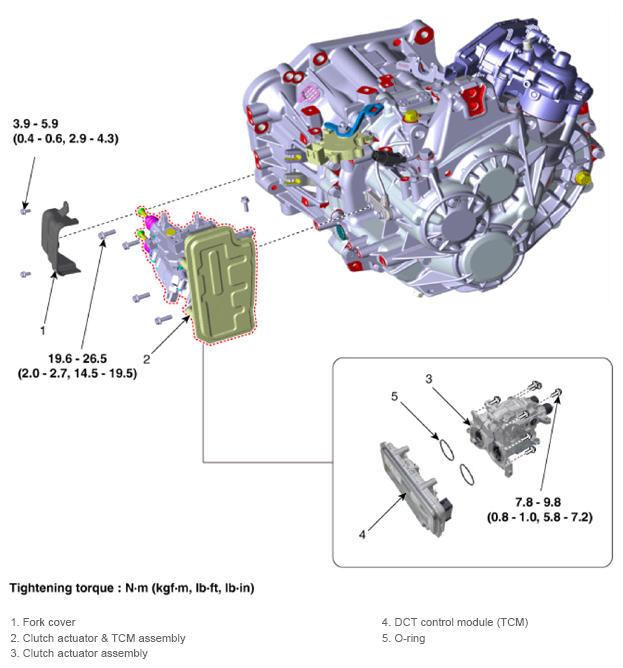

Fig 1: Clutch Actuator And TCM Assembly Components Location With Torque Specification
G13480853Courtesy of KIA MOTORS AMERICA, INC.
