Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

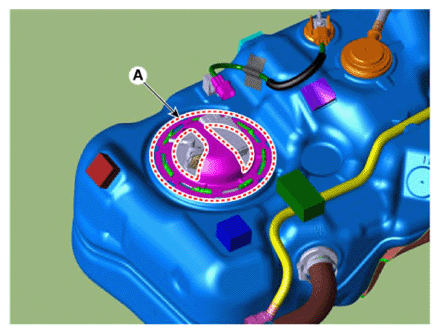

  1. Remove the fuel pump after removing the fuel pump plate cover (A) by using a SST (09310-B8100).
    G13480715Courtesy of KIA MOTORS AMERICA, INC.

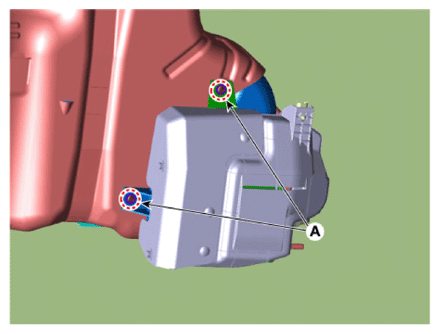

  2. Loosen the canister mounting bolts (A).
    G13480716Courtesy of KIA MOTORS AMERICA, INC.

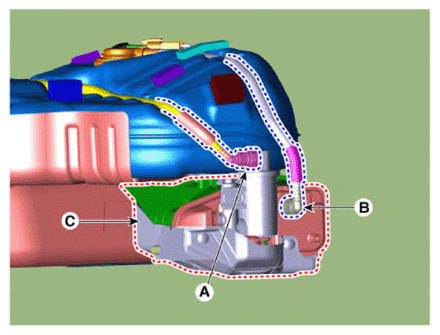

  3. Remove the canister.
    1. Disconnect the ventilation hose quick-connector (A).
    2. Disconnect the vapor hose quick-connector (B).
    3. Remove the canister (C).
    G13480717Courtesy of KIA MOTORS AMERICA, INC.

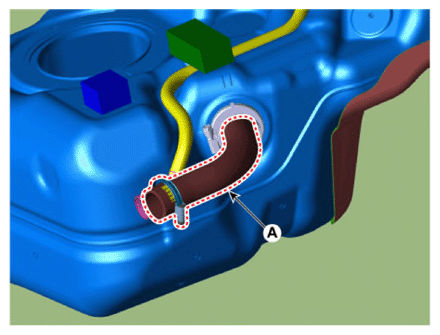

  4. Disconnect the fuel feed hose (A).
    G13480718Courtesy of KIA MOTORS AMERICA, INC.

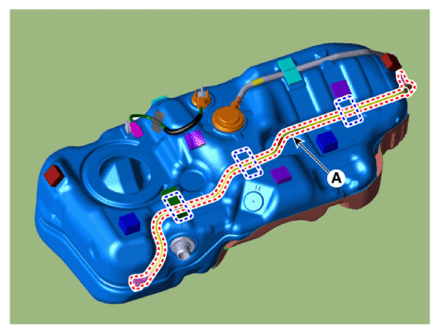

  5. Remove the ventilation hose (A).
    G13480719Courtesy of KIA MOTORS AMERICA, INC.

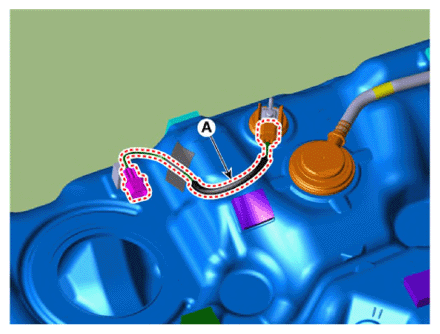

  6. Disconnect the fuel tank pressure sensor wiring (A).
    G13480720Courtesy of KIA MOTORS AMERICA, INC.

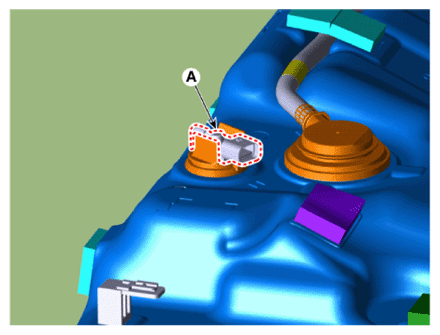

  7. Remove the fuel tank pressure sensor (A) by pulling it in the direction of vertical from fuel tank after releasing the fixing hook.
    G13480721Courtesy of KIA MOTORS AMERICA, INC.
