Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

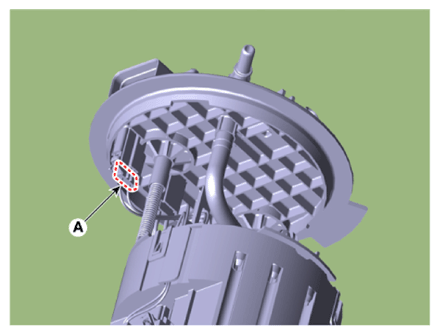

  2. Disconnect the fuel sender connector (A).
    G13480757Courtesy of KIA MOTORS AMERICA, INC.

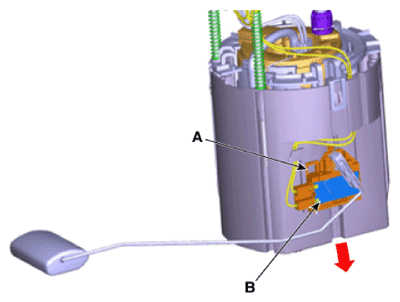

  3. Remove the fuel sender (B) in the direction of arrow after releasing the fixing hook (A).
    G13480758Courtesy of KIA MOTORS AMERICA, INC.
    G13480759Courtesy of KIA MOTORS AMERICA, INC.
