Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in the fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

    NOTE: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the KDS after completion of "Release Residual Pressure in Fuel Line" work.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

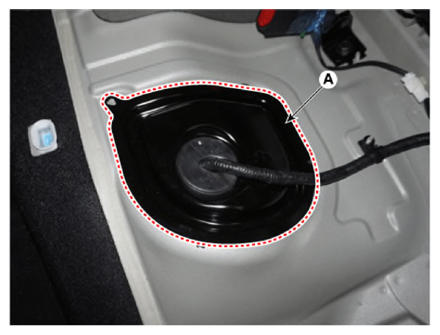

  4. Remove the fuel pump service cover (A).
    G13480780Courtesy of KIA MOTORS AMERICA, INC.

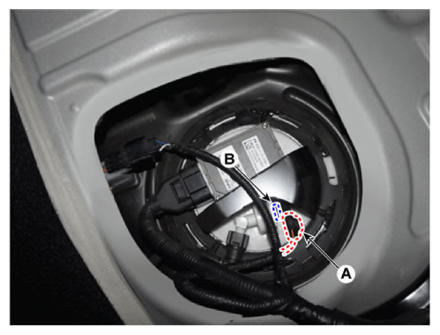

  5. Disconnect the fuel pressure sensor connector (A).
  6. Remove the fixing pin (B).
    G13480781Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the fuel pressure sensor from the fuel pump.
