Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

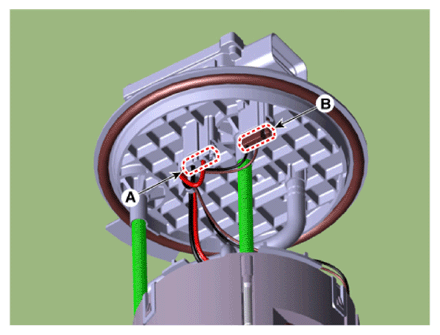

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G13480761Courtesy of KIA MOTORS AMERICA, INC.

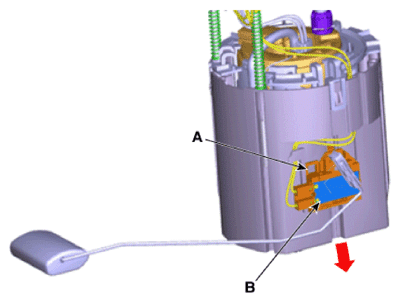

  3. Remove the fuel sender (B) in the direction of arrow after releasing the fixing hook (A).
    G13480762Courtesy of KIA MOTORS AMERICA, INC.

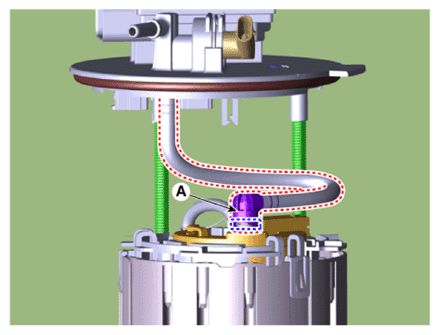

  4. Disconnect the fuel feed tube (A) after removing the fixing clip.
    G13480763Courtesy of KIA MOTORS AMERICA, INC.

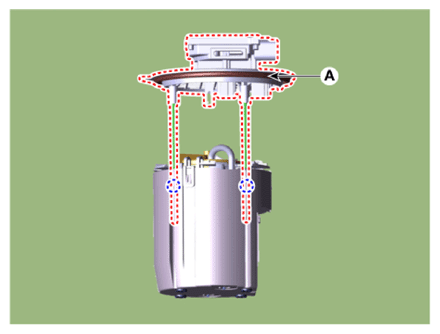

  5. Remove the head assembly (A) after releasing the fixing hook.
    G13480764Courtesy of KIA MOTORS AMERICA, INC.

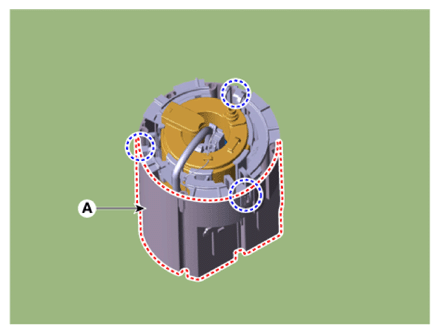

  6. Remove the reservoir-cup (A) after releasing the fixing hooks.
    G13480765Courtesy of KIA MOTORS AMERICA, INC.

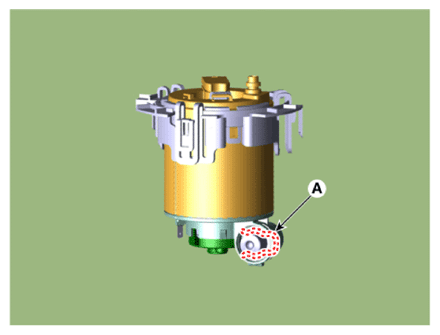

  7. Remove the regulator fixing pin (A).
    G13480766Courtesy of KIA MOTORS AMERICA, INC.

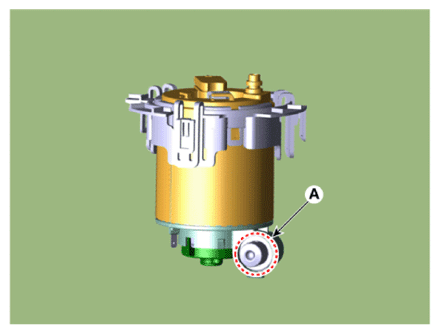

  8. Remove the regulator (A).
    G13480767Courtesy of KIA MOTORS AMERICA, INC.
    G13480768Courtesy of KIA MOTORS AMERICA, INC.
