Low Pressure Fuel Line [High Pressure Fuel Pump ↔ Fuel Tank]

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

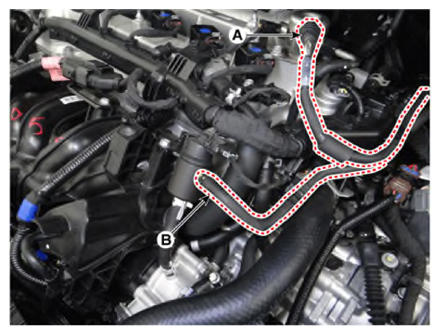

  5. Disconnect the low pressure fuel line quick-connector (A).
  6. Disconnect the vapor hose (B).
    G13480782Courtesy of KIA MOTORS AMERICA, INC.

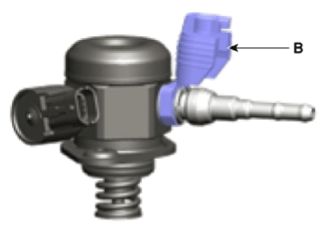

    NOTE: Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)
    G13480783Courtesy of KIA MOTORS AMERICA, INC.

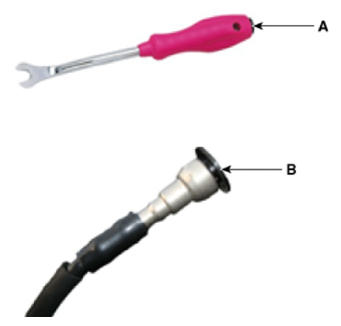

    CAUTION: When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
    If the clip is damaged, fuel line leak can be occur due to a bad connection.
    G13480784Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the fuel tank.

    (Fuel Delivery System - "Fuel Tank")

  8. Remove the front sub frame.

    (Refer to Suspension System - "SUB FRAME ")

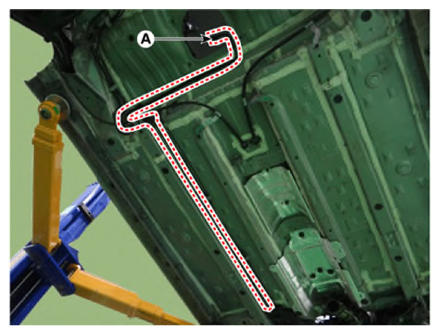

  9. Remove the fuel line (A) after loosening the mounting bolts and bracket.
    G13480785Courtesy of KIA MOTORS AMERICA, INC.
