Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the Rear LH wheel.
(Refer to Suspension System - "TIRES/WHEELS ")
Remove the LH side rear wheel guard.
(Refer to Body - "REAR WHEEL GUARD ")
Open the fuel filler door.

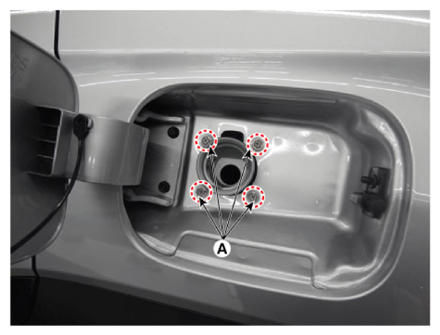

Remove the fuel filler-neck assembly mounting bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

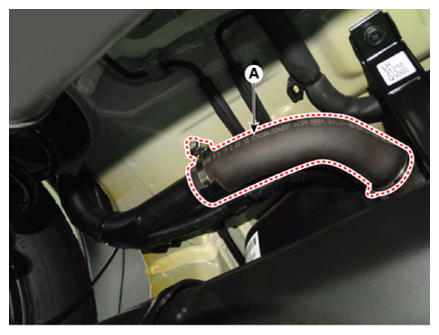

Disconnect the fuel filler hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

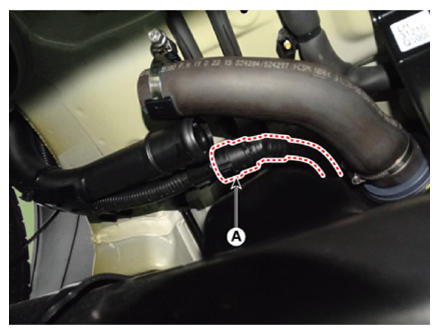

Disconnect the ventilation hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

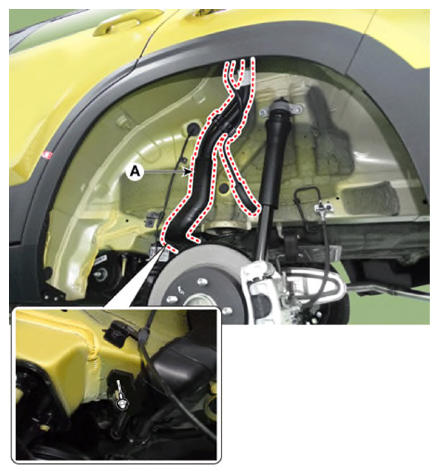

Remove the fuel filler-neck assembly (A) after loosening the mounting bolt.
Tightening torque:

9.0 - 10.0 N.m (0.91 - 1.0 kgf.m, 6.63 - 7.37 lb-ft)
