Removal And Installation
WARNING: This page is about a different variant/trim than selected.

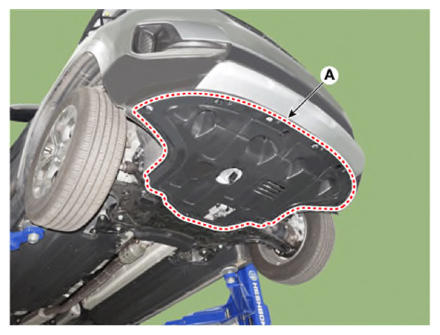

- Loosen the mounting clip and bolt and then remove the engine room under cover (A).
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.0 lb.in)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
