Transaxle Mounting Bracket

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air duct and air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  2. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  3. Remove the engine control module (ECM).

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

  4. Remove the battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  6. Install the jack to the edge of transaxle.
    NOTE: Put the rubber block between the jack and transaxle to avoid damaging the transaxle.
  7. Remove the LH front wheel guard.

    (Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")

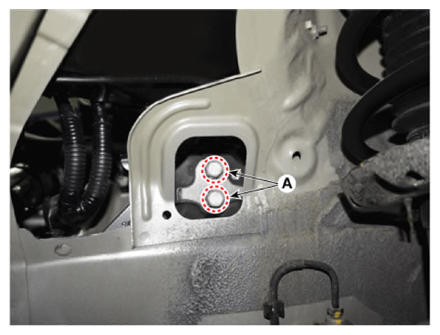

  8. Remove the transaxle support bracket mounting bolts (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G13480272Courtesy of KIA MOTORS AMERICA, INC.

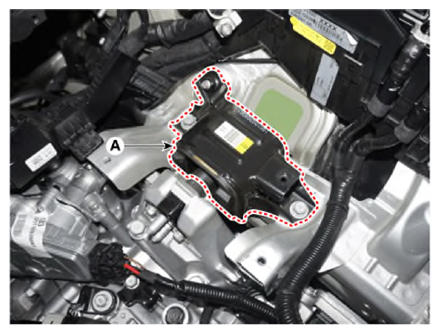

  9. Remove the transaxle mounting bracket (A).

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G13480273Courtesy of KIA MOTORS AMERICA, INC.
  10. Install in the reverse order of removal.
