Engine Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

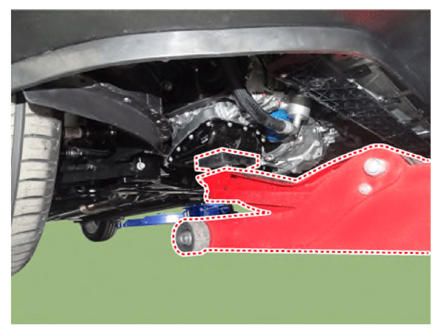

Install the jack to the edge of oil pan to support the engine.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert the rubber block between jack and oil pan.

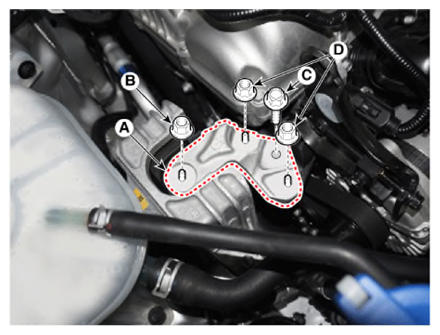

Remove the engine mounting support bracket (A).
Tightening torque

Nut (B):

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

Bolt (C), Nut (D):

58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the reservoir tank.
(Refer to Cooling System - "RESERVOIR TANK ")

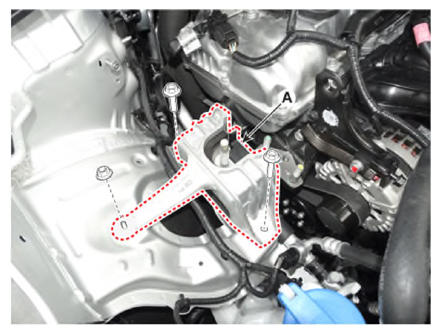

Remove the engine mounting bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
