Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

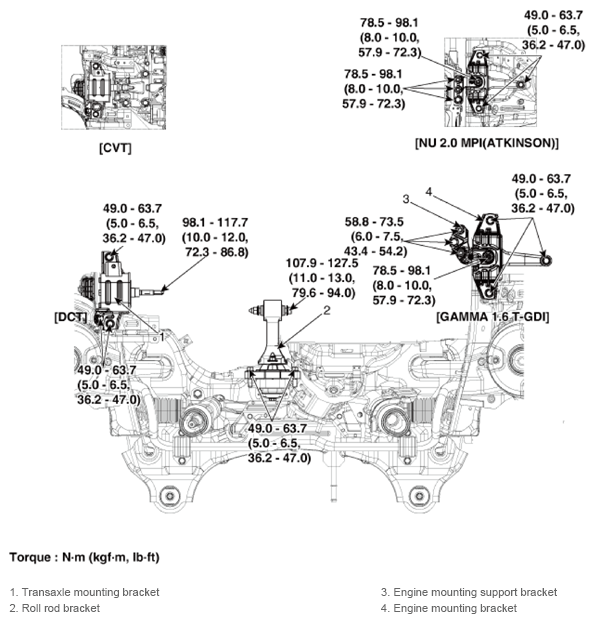

Fig 1: Engine Mounting Components Location With Torque Specification
G13480266Courtesy of KIA MOTORS AMERICA, INC.
