Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13505071Courtesy of KIA MOTORS AMERICA, INC.

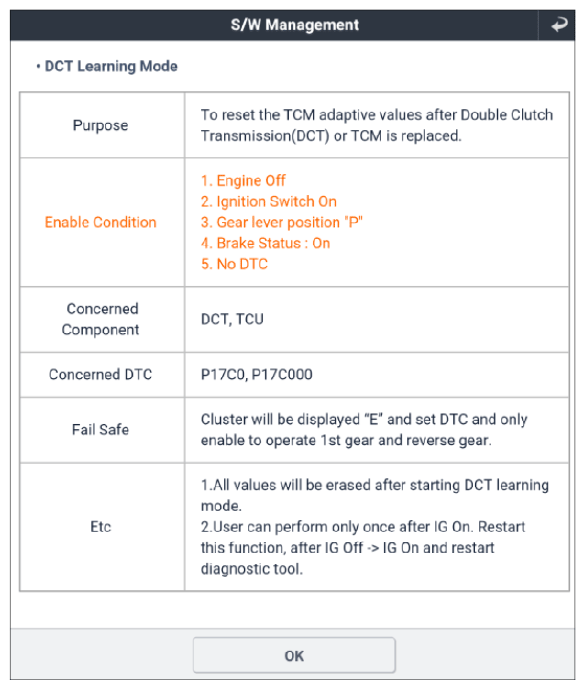

G13505072Courtesy of KIA MOTORS AMERICA, INC.

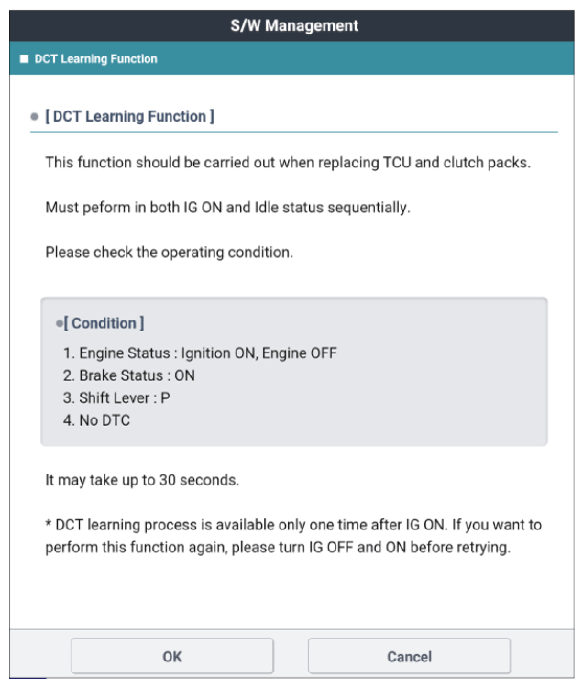

G13505073Courtesy of KIA MOTORS AMERICA, INC.

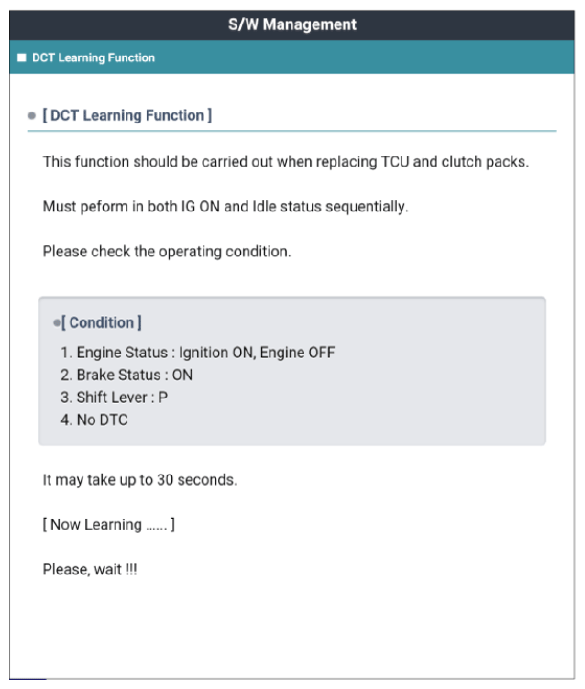

G13505074Courtesy of KIA MOTORS AMERICA, INC.

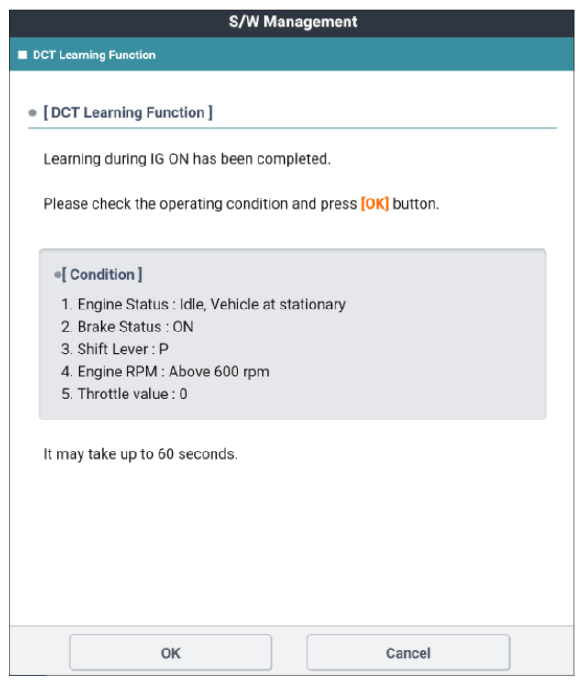

G13505075Courtesy of KIA MOTORS AMERICA, INC.

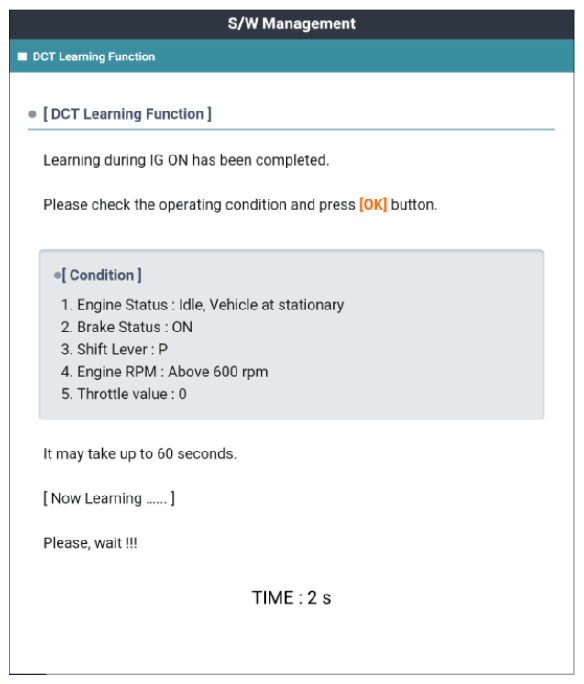

G13505076Courtesy of KIA MOTORS AMERICA, INC.
G13505077Courtesy of KIA MOTORS AMERICA, INC.
