Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.

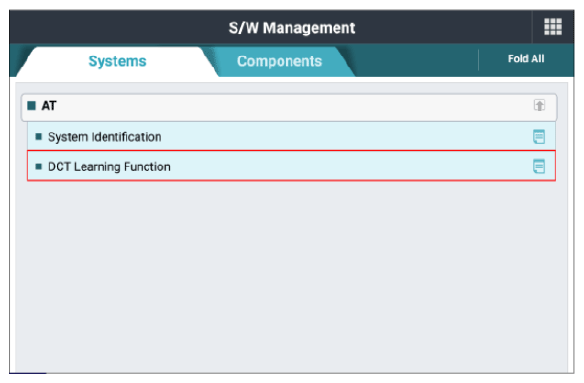

G13505032Courtesy of KIA MOTORS AMERICA, INC.

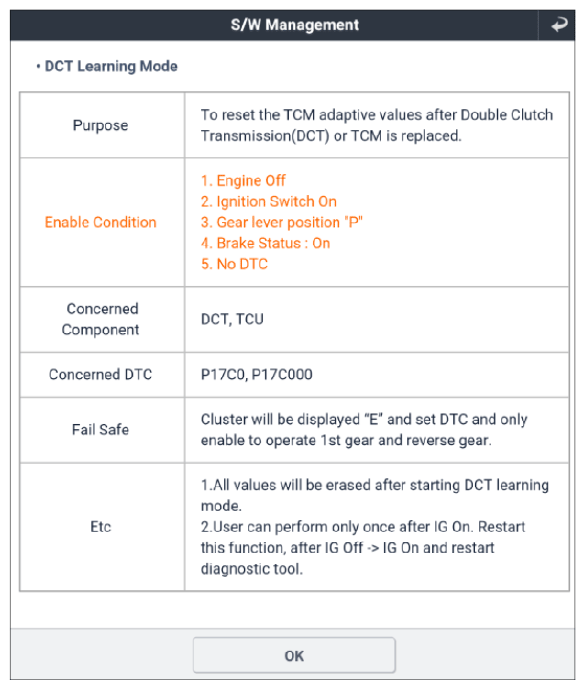

G13505033Courtesy of KIA MOTORS AMERICA, INC.

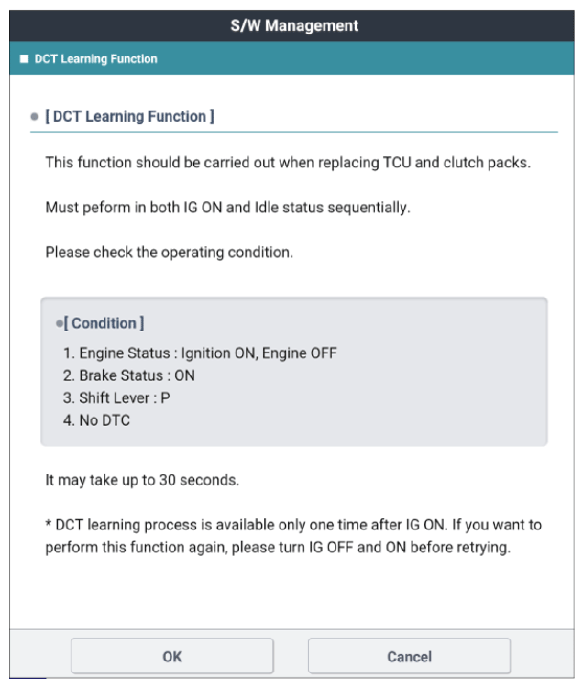

G13505034Courtesy of KIA MOTORS AMERICA, INC.

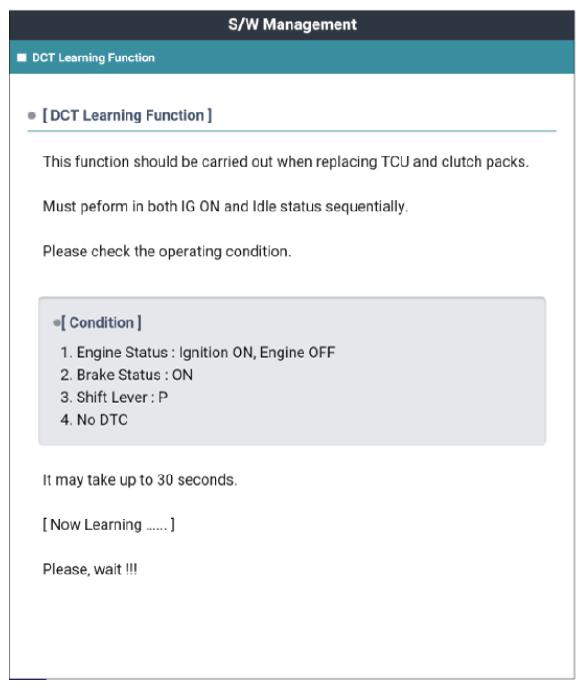

G13505035Courtesy of KIA MOTORS AMERICA, INC.

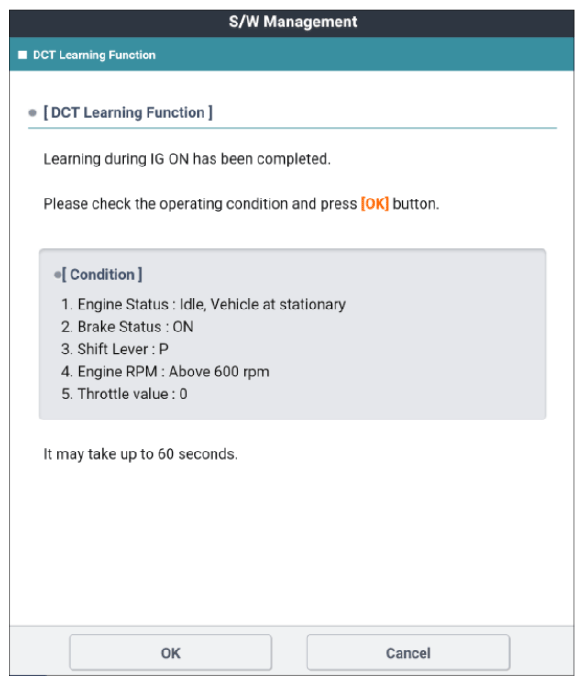

G13505036Courtesy of KIA MOTORS AMERICA, INC.

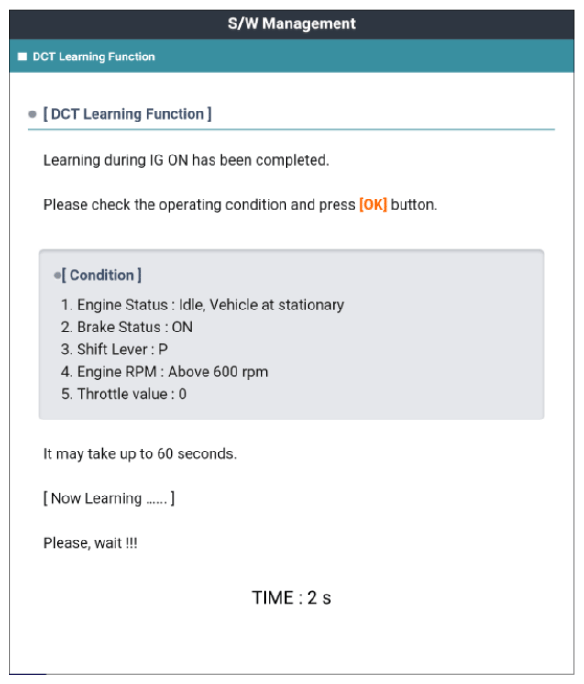

G13505037Courtesy of KIA MOTORS AMERICA, INC.
G13505038Courtesy of KIA MOTORS AMERICA, INC.
