Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13504941Courtesy of KIA MOTORS AMERICA, INC.

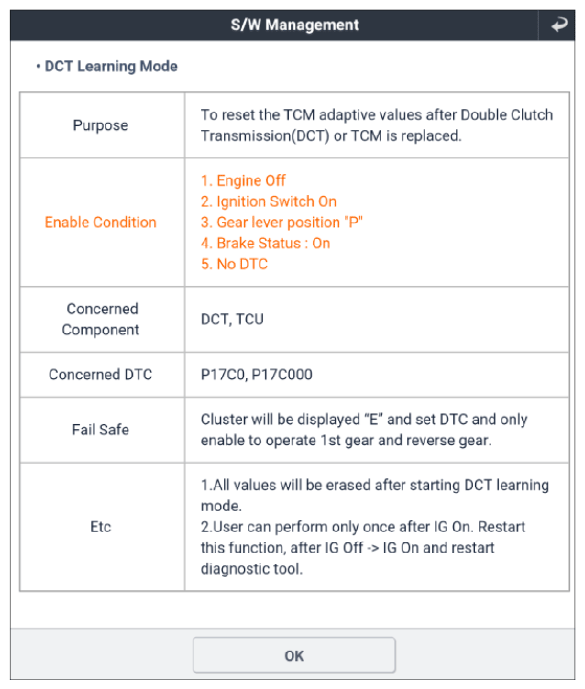

G13504942Courtesy of KIA MOTORS AMERICA, INC.

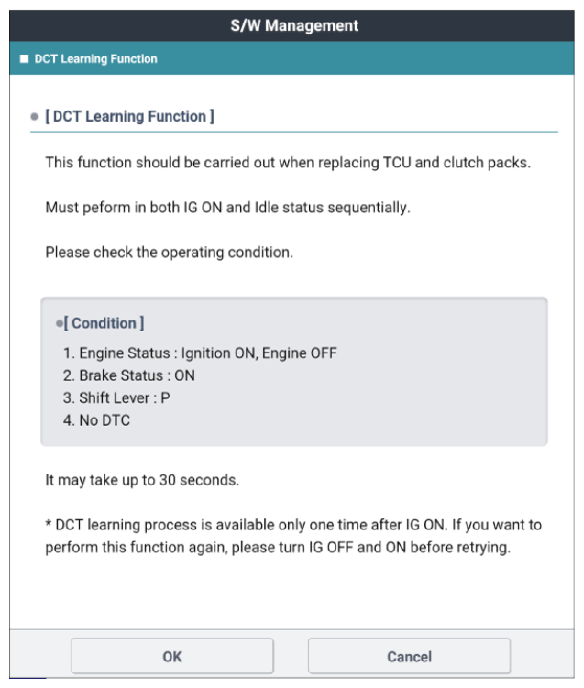

G13504943Courtesy of KIA MOTORS AMERICA, INC.

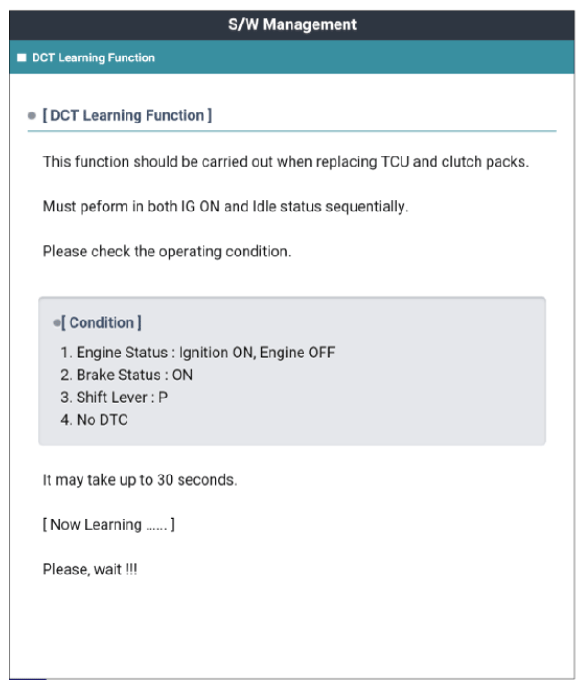

G13504944Courtesy of KIA MOTORS AMERICA, INC.

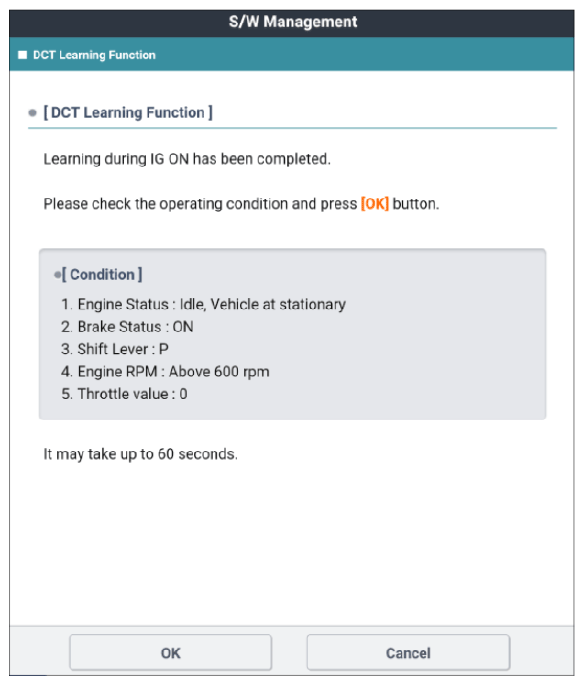

G13504945Courtesy of KIA MOTORS AMERICA, INC.

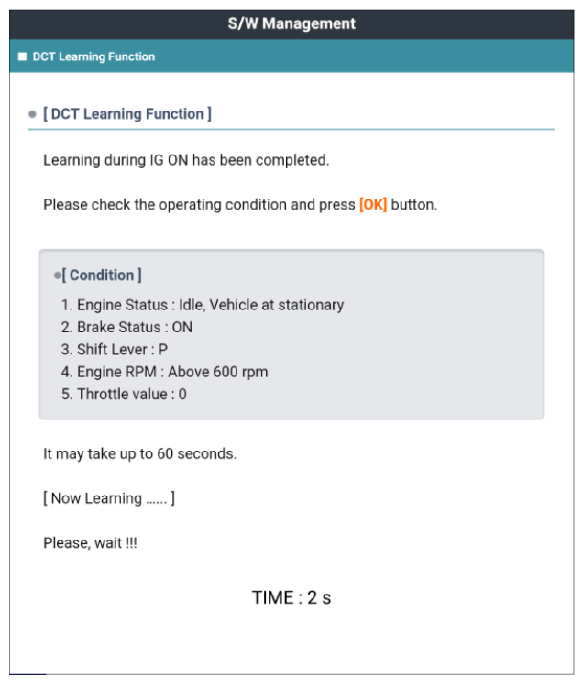

G13504946Courtesy of KIA MOTORS AMERICA, INC.
G13504947Courtesy of KIA MOTORS AMERICA, INC.
