Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13504928Courtesy of KIA MOTORS AMERICA, INC.

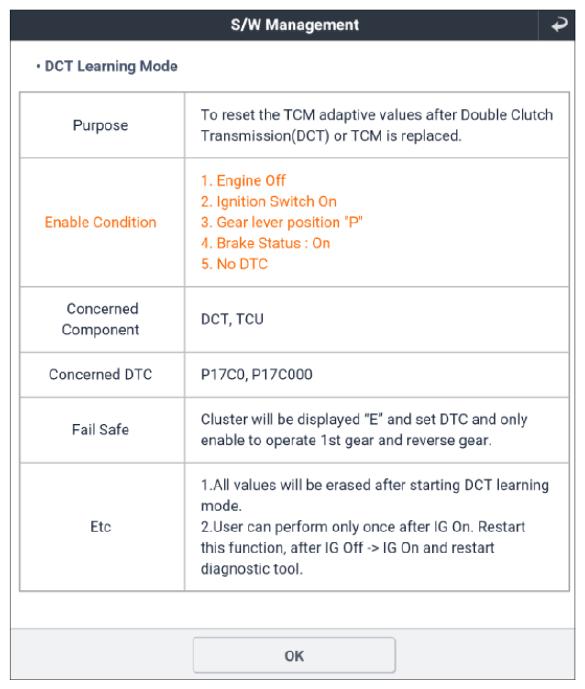

G13504929Courtesy of KIA MOTORS AMERICA, INC.

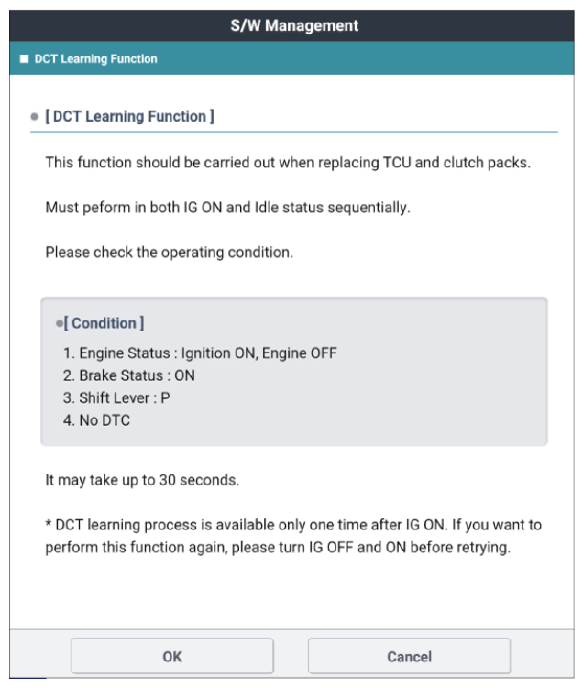

G13504930Courtesy of KIA MOTORS AMERICA, INC.

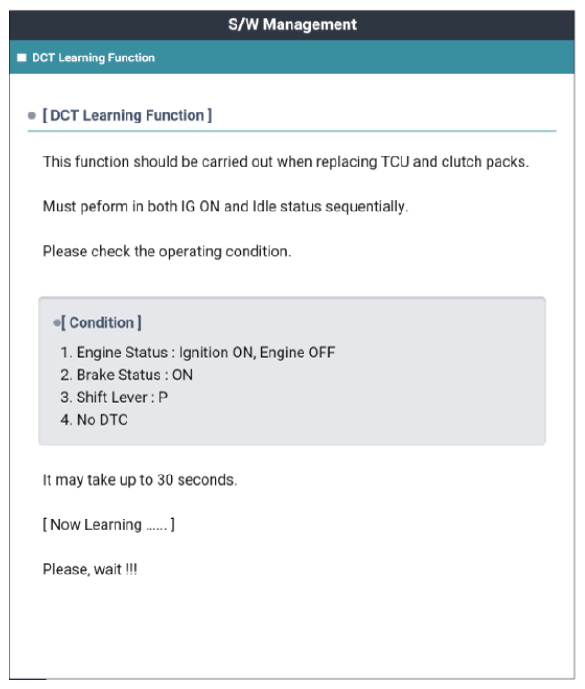

G13504931Courtesy of KIA MOTORS AMERICA, INC.

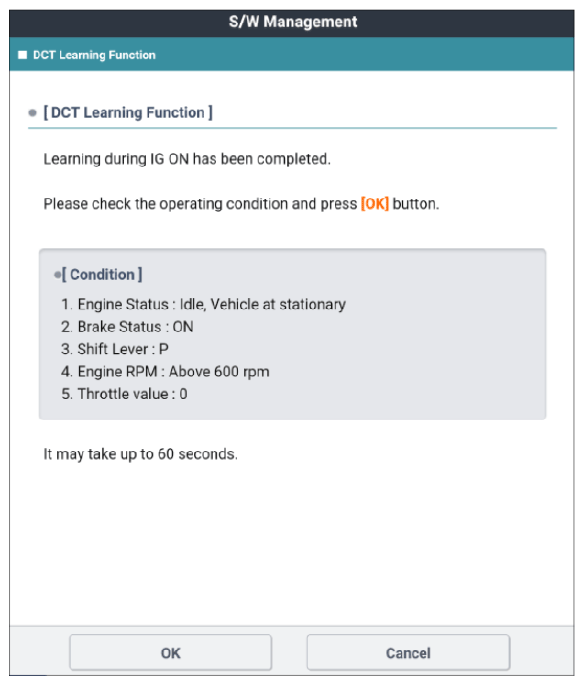

G13504932Courtesy of KIA MOTORS AMERICA, INC.

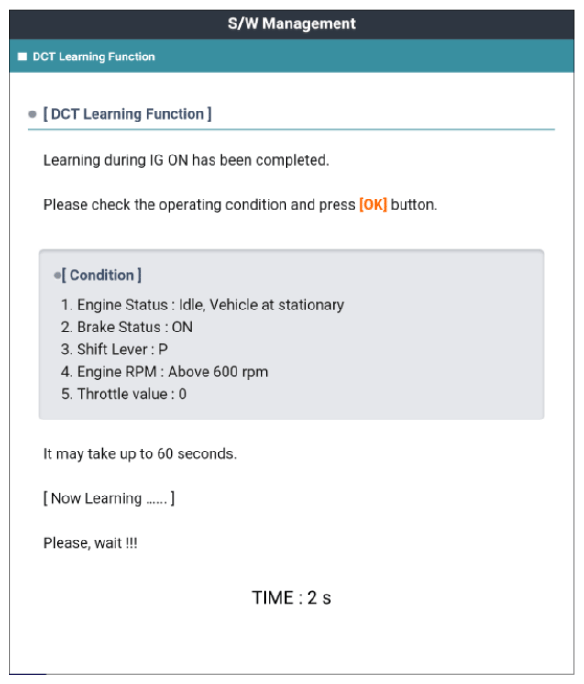

G13504933Courtesy of KIA MOTORS AMERICA, INC.
G13504934Courtesy of KIA MOTORS AMERICA, INC.
