Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.

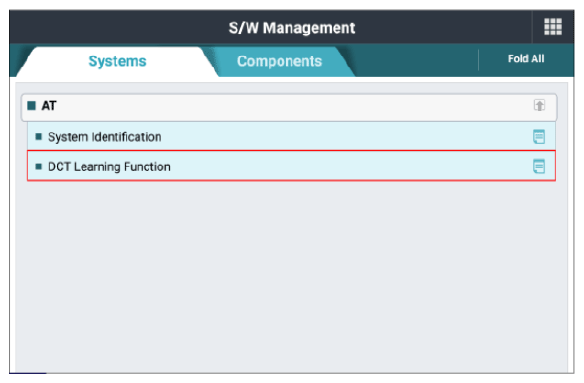

G13504883Courtesy of KIA MOTORS AMERICA, INC.

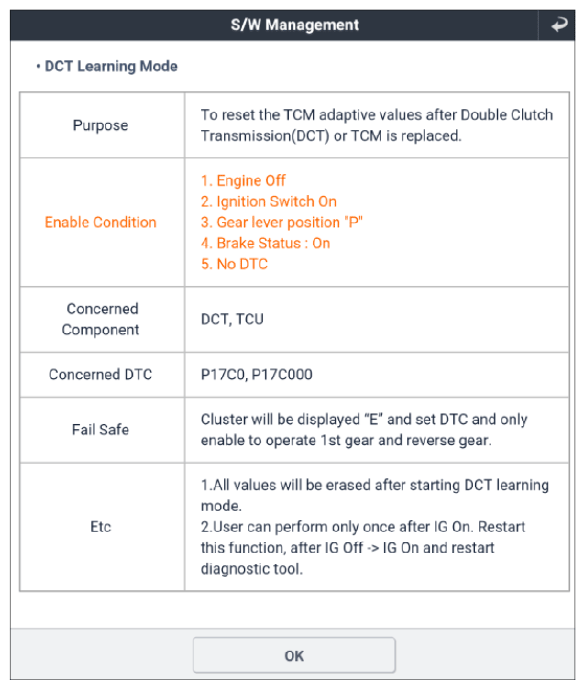

G13504884Courtesy of KIA MOTORS AMERICA, INC.

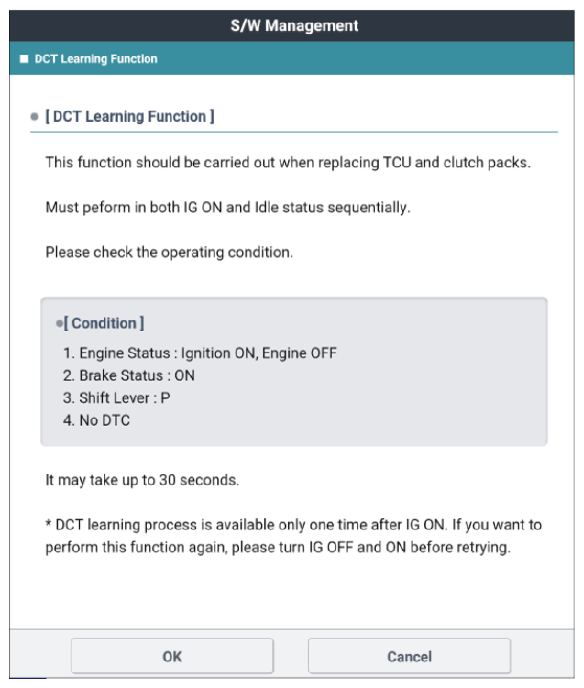

G13504885Courtesy of KIA MOTORS AMERICA, INC.

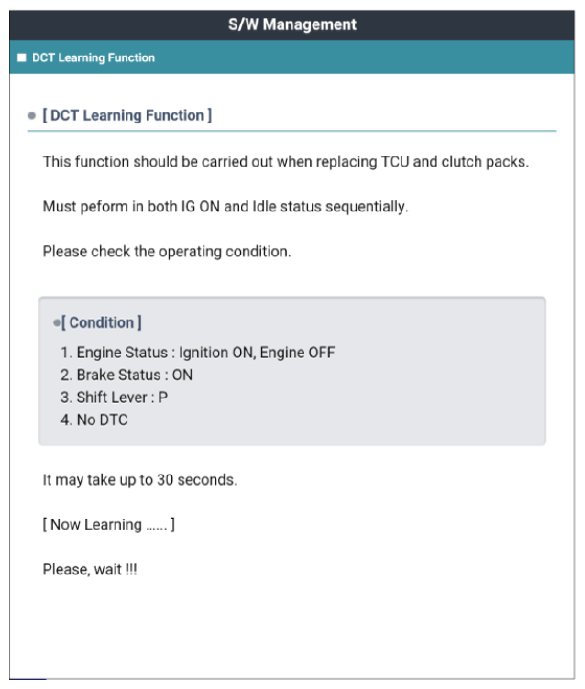

G13504886Courtesy of KIA MOTORS AMERICA, INC.

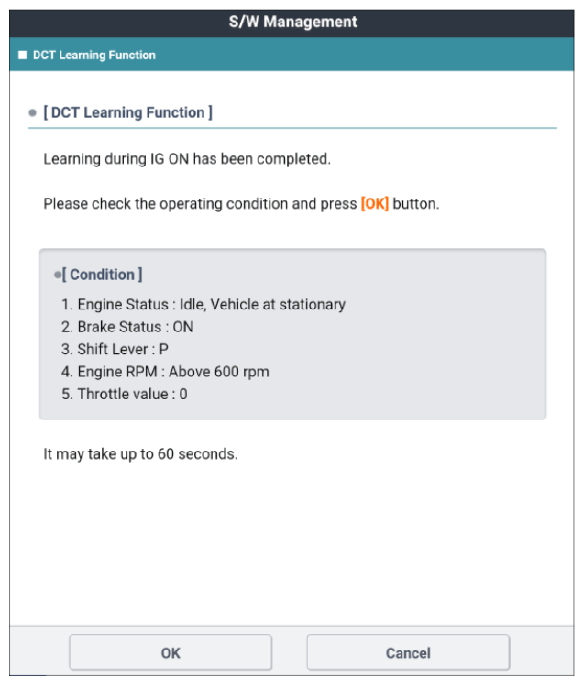

G13504887Courtesy of KIA MOTORS AMERICA, INC.

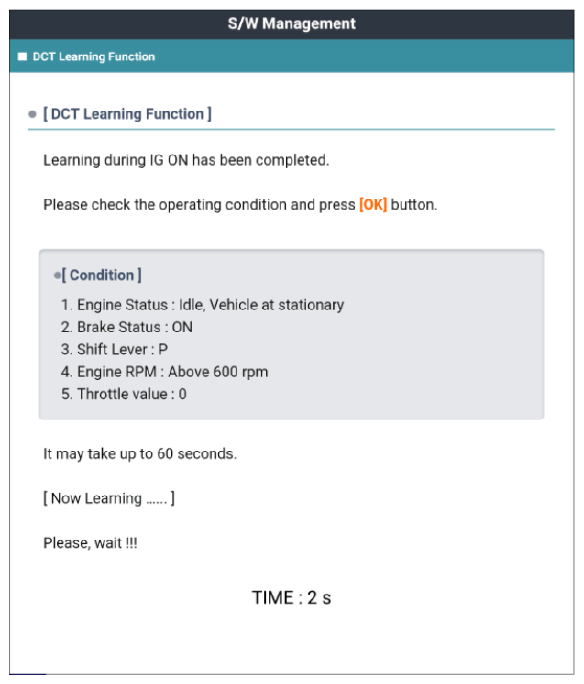

G13504888Courtesy of KIA MOTORS AMERICA, INC.

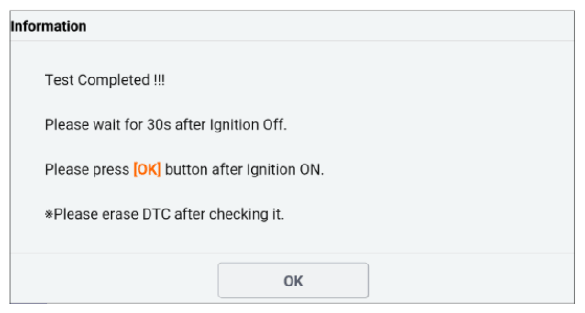

G13504889Courtesy of KIA MOTORS AMERICA, INC.
