Monitor KDS Data

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

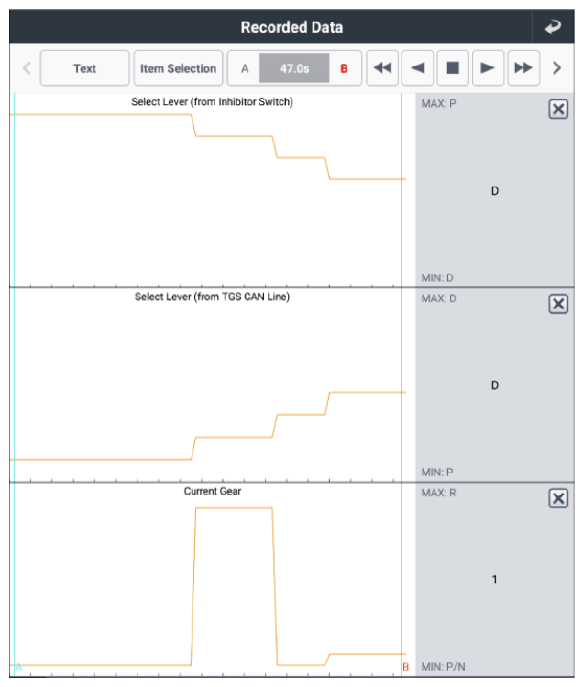

Ignition "ON". Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Refer to "LIFT AND SUPPORT POINTS " and lift vehicle with suitable lift. Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor selected parameters shown in illustration below in "Current Data" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

If the shift cable is poor alignment, it can cause a malfunction. Therefore check the alignment of the shift cable before replacing the inhibitor switch.

No Good

Go to "SHIFT CABLE INSPECTION " procedure.
