Circuit Inspection

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

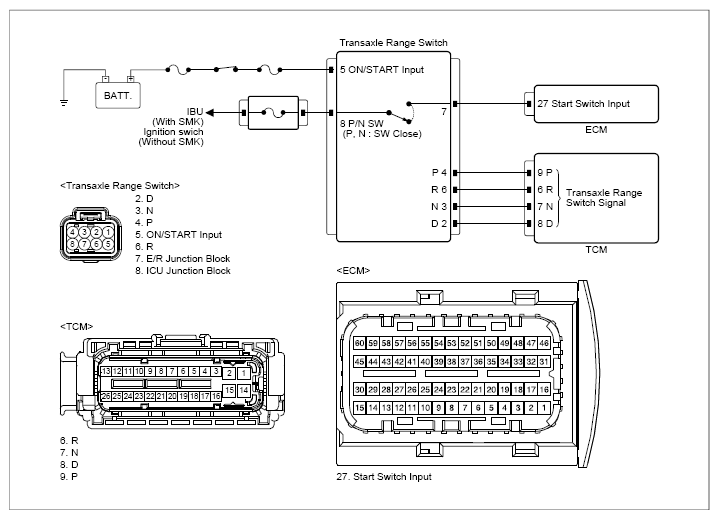

G13504810

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Transaxle range switch connector	5 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect inhibitor switch connector. Ignition "ON". Measure voltages between each terminal and chassis ground during shift lever changed "P, R, N, D".	Transaxle range switch connector	(P-R-N-D)	Chassis ground	-	See below "Inhibitor switch specification"

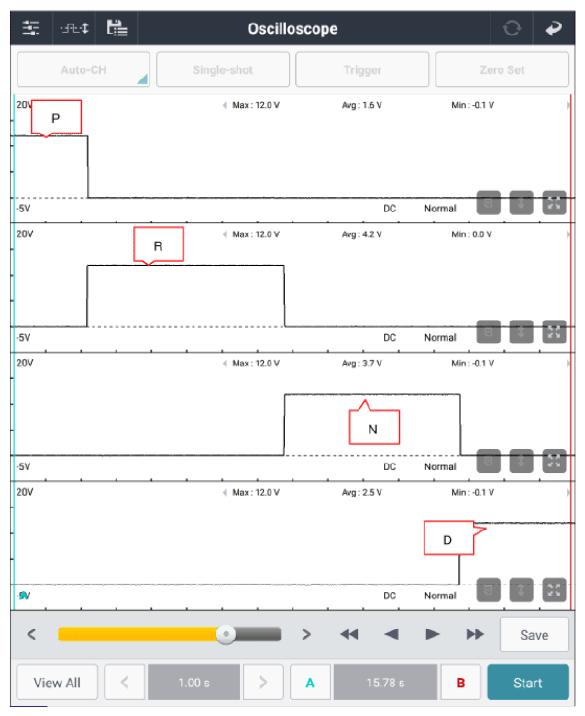

Ignition "ON". 2 Measure voltages between each terminal and chassis ground during shift lever changed "P, R, N, D".	Transaxle range switch connector	4 (P)	Transaxle range switch connector	6 (R)	Fig.1
	Transaxle range switch connector	3 (N)	Transaxle range switch connector	2 (D)	Fig.1

NO	P	P-R	R	R-N	N	N-D	D
S1	12V	12V	0	0	0	0	0
S2	0	12V	12V	12V	0	0	0
S3	0	0	0	12V	12V	12V	0
S4	0	0	0	0	0	12V	12V

G13504811

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.
Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
