Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13504788Courtesy of KIA MOTORS AMERICA, INC.

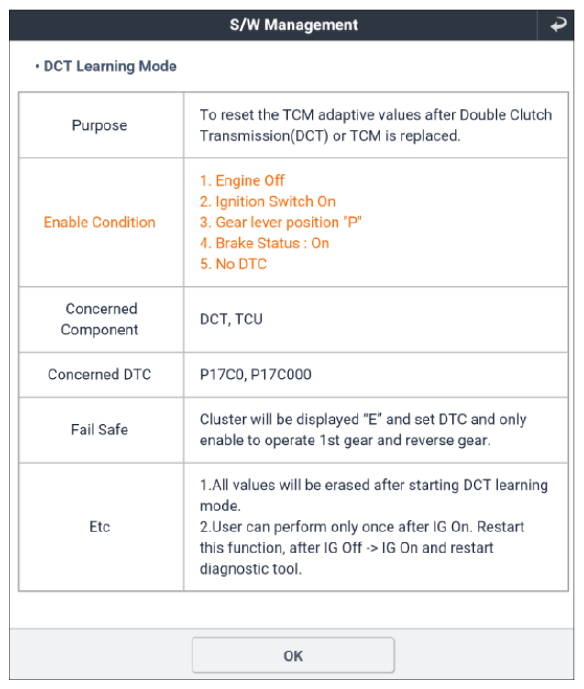

G13504789Courtesy of KIA MOTORS AMERICA, INC.

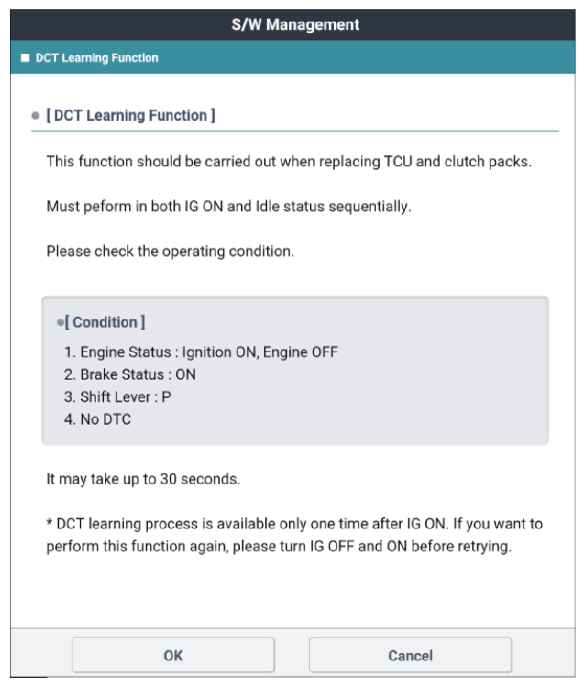

G13504790Courtesy of KIA MOTORS AMERICA, INC.

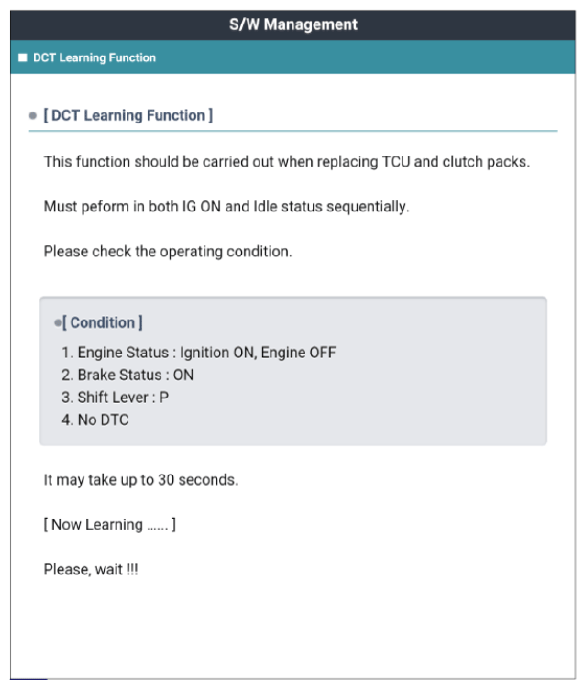

G13504791Courtesy of KIA MOTORS AMERICA, INC.

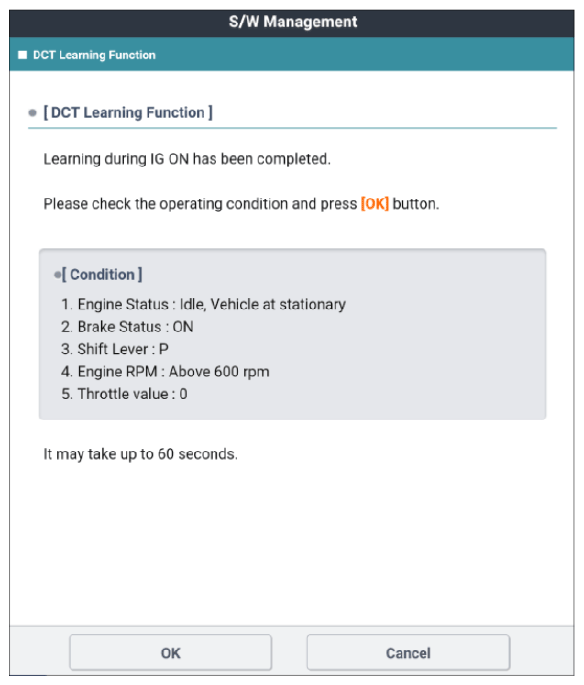

G13504792Courtesy of KIA MOTORS AMERICA, INC.

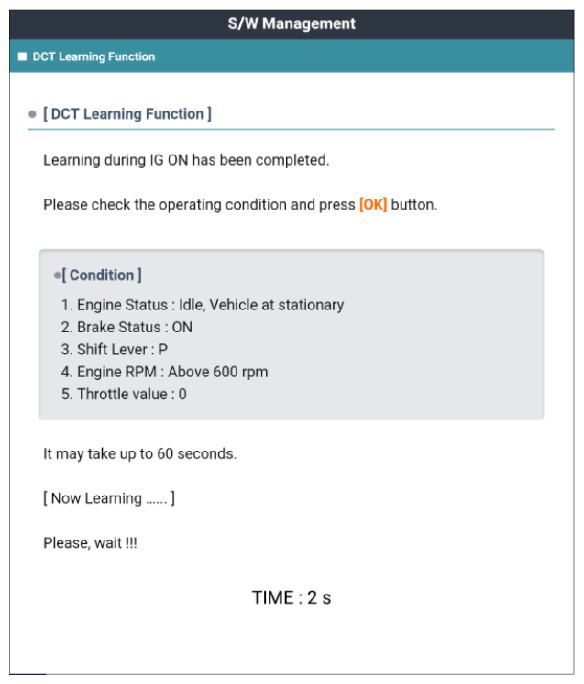

G13504793Courtesy of KIA MOTORS AMERICA, INC.
G13504794Courtesy of KIA MOTORS AMERICA, INC.
