Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13504761Courtesy of KIA MOTORS AMERICA, INC.

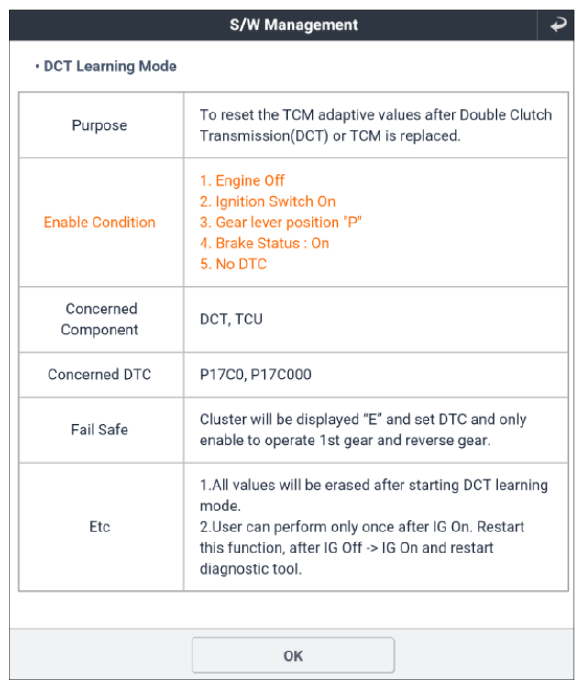

G13504762Courtesy of KIA MOTORS AMERICA, INC.

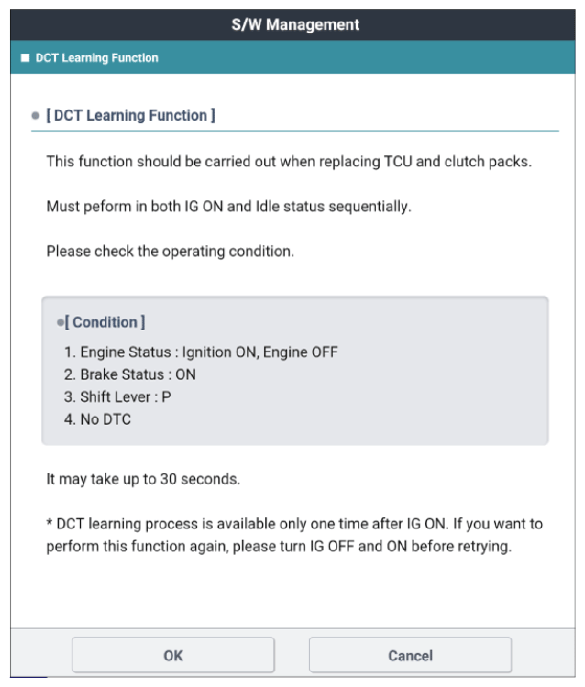

G13504763Courtesy of KIA MOTORS AMERICA, INC.

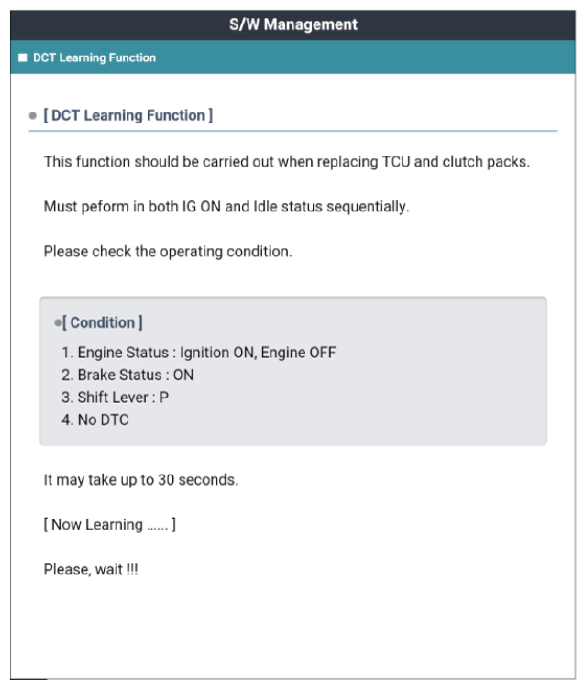

G13504764Courtesy of KIA MOTORS AMERICA, INC.

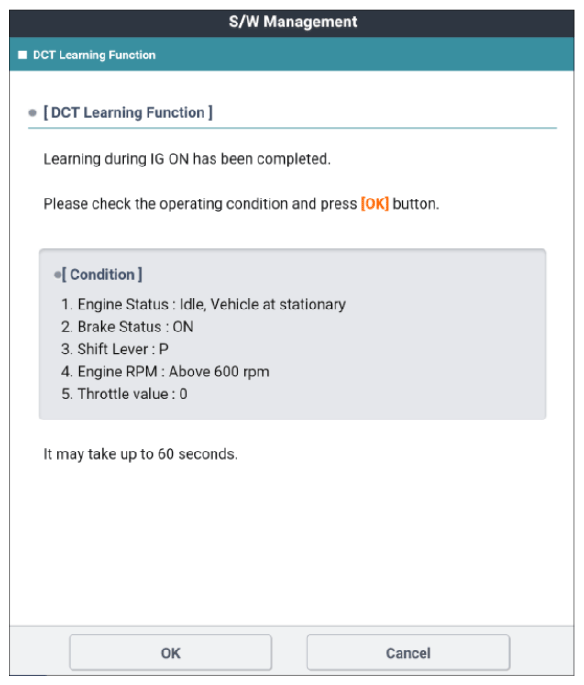

G13504765Courtesy of KIA MOTORS AMERICA, INC.

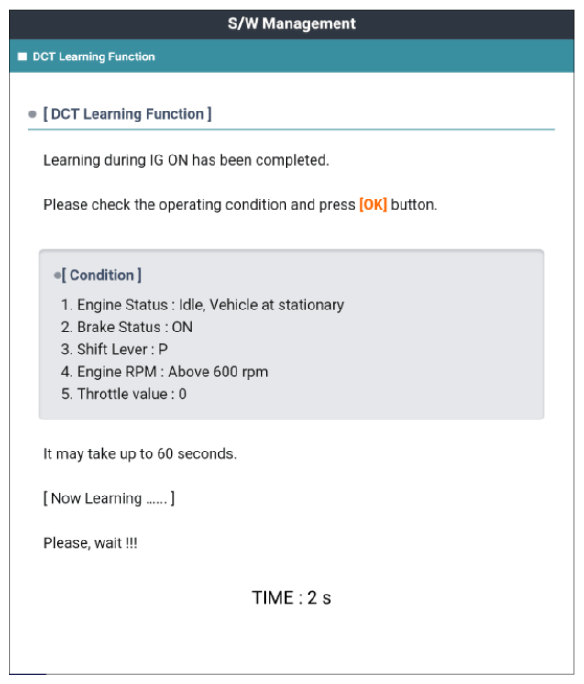

G13504766Courtesy of KIA MOTORS AMERICA, INC.
G13504767Courtesy of KIA MOTORS AMERICA, INC.
