Vehicle S/W Management

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "OFF".
  2. Ignition "ON".
  3. Gear lever position "P".
  4. Brake status "ON".
  5. No DTC.
  1. Ignition "OFF".
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "DCT Learning function" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 7
CAUTION: In case of replacing TCM or DCT perform following procedures.
G13505408Courtesy of KIA MOTORS AMERICA, INC.
G13505409Courtesy of KIA MOTORS AMERICA, INC.

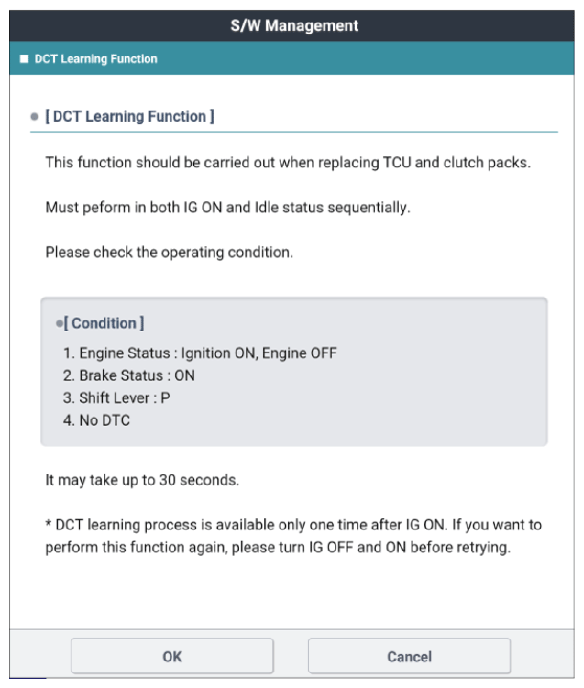

G13505410Courtesy of KIA MOTORS AMERICA, INC.

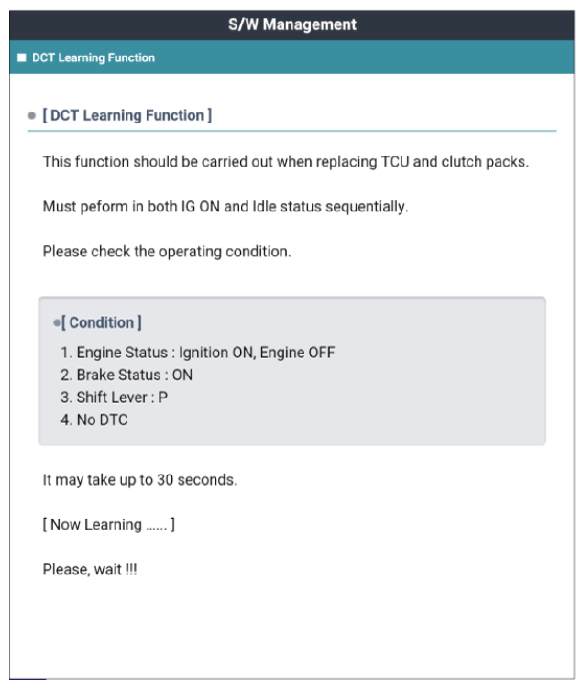

G13505411Courtesy of KIA MOTORS AMERICA, INC.

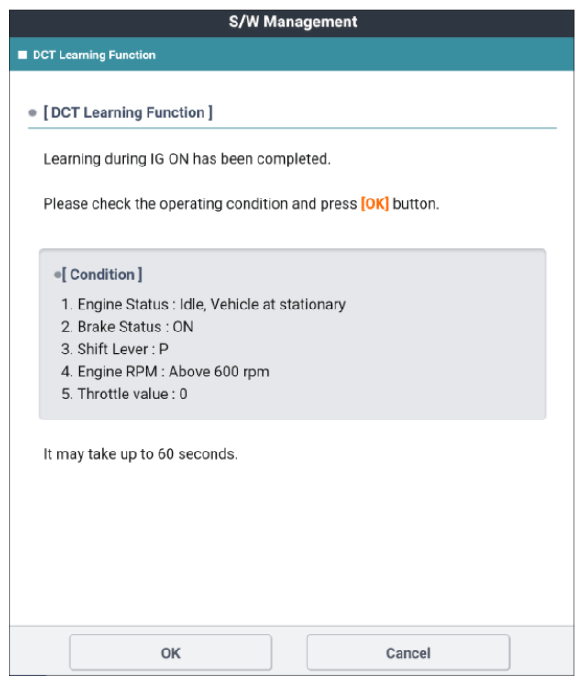

G13505412Courtesy of KIA MOTORS AMERICA, INC.

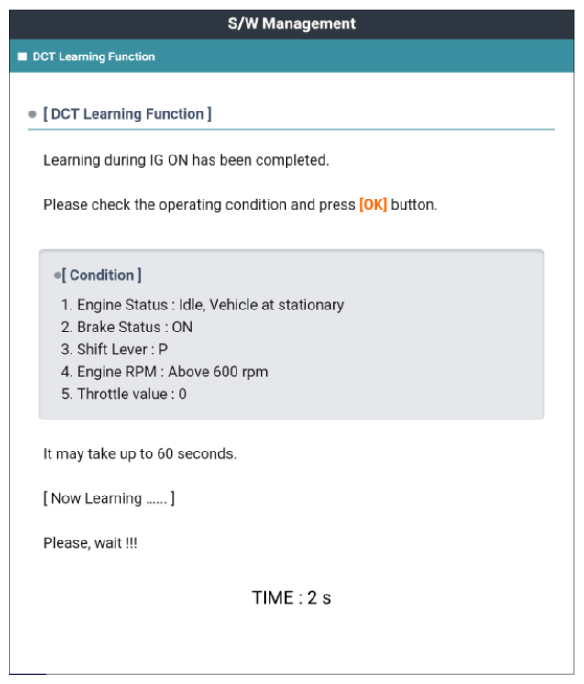

G13505413Courtesy of KIA MOTORS AMERICA, INC.
G13505414Courtesy of KIA MOTORS AMERICA, INC.
